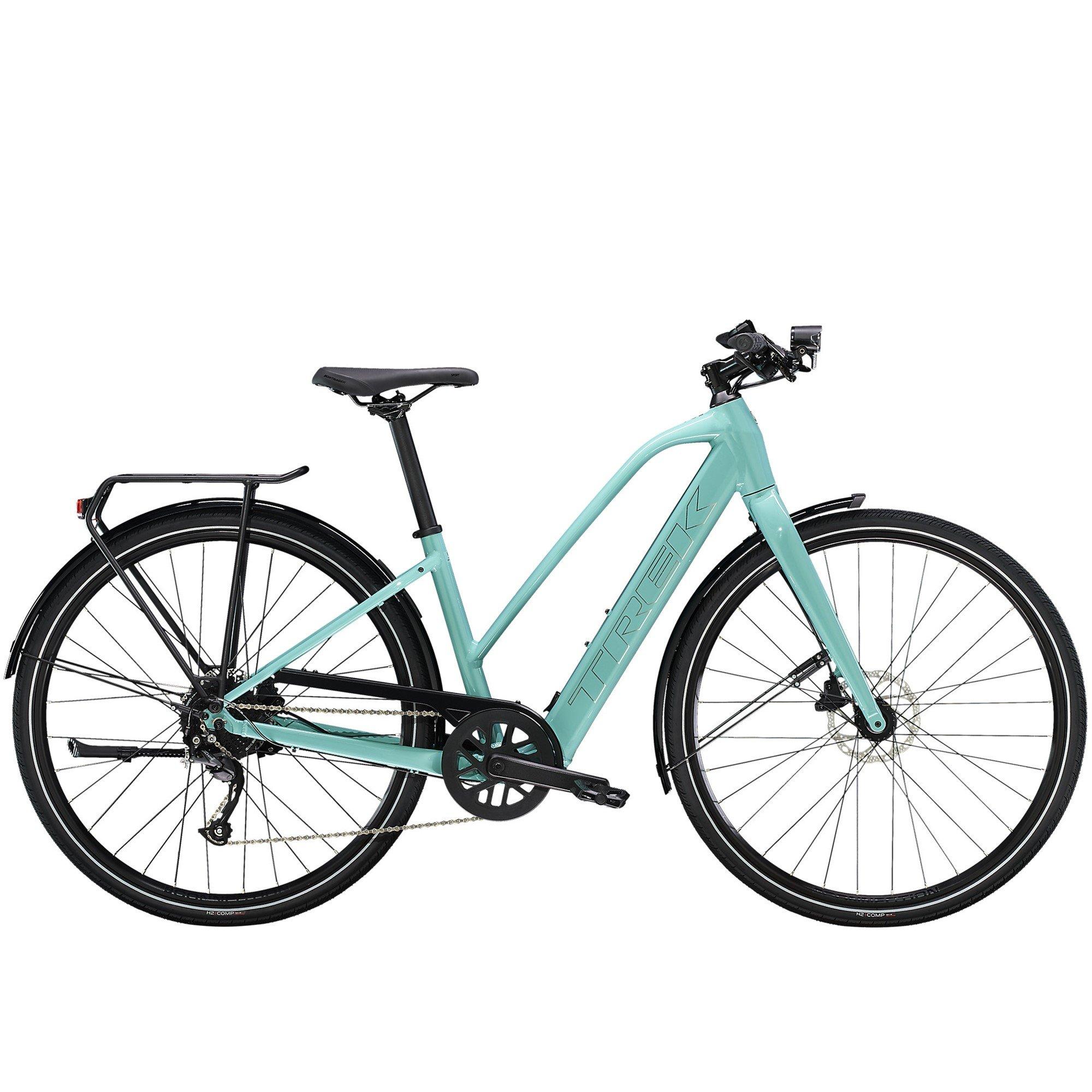

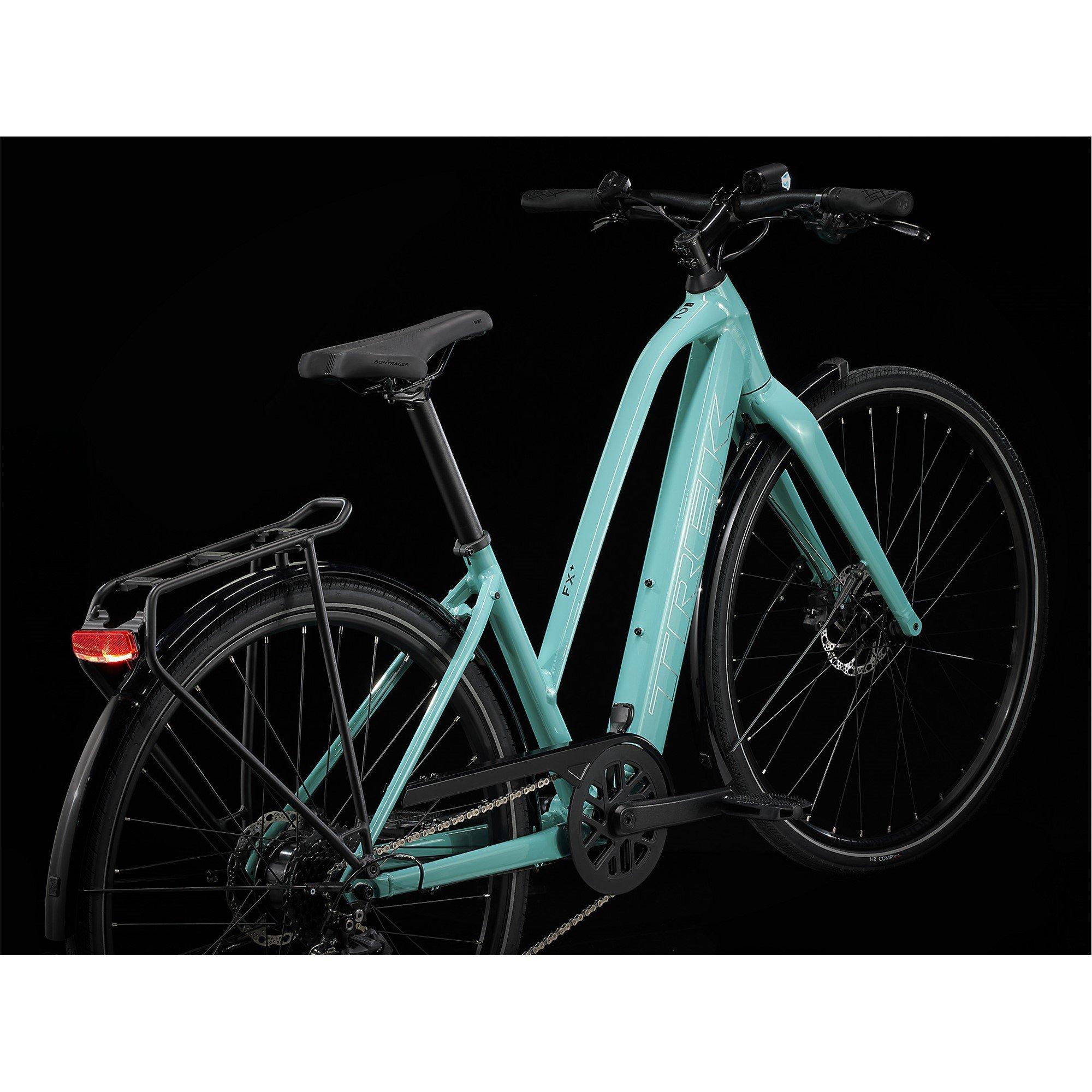

About the FX+ 2 Stagger

The FX+ 2 Stagger offers a lightweight, simple-to-use city e-bike that brings a capable boost to daily errands, commutes and joy rides around your city. Trek's proprietary pedal-assist system with a hub motor (250 W, 40 Nm) that assists up to 20 mph (25 km/h in Europe) and a 250 Wh battery for a range of up to 56 kilometres per charge. Plus, fast 700c wheels, fast-rolling yet stable 40c tyres with reflective sidewalls, a reliable 9-speed Shimano drivetrain, hydraulic disc brakes, integrated lights powered by the battery, a MIK-compatible rear rack, mudguards and a kickstand. The stagger design makes it easier to hop on and off the bike.

Key Features

• Trek's lightest city e-bike, making it easier to manoeuvre while parking and less of a pain to carry up stairs
• The pedal-assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
• Double your range with a 250 Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame
• A lightweight and powerful 40 Nm rear hub drive offers confident handling and uninterrupted power

Specifications

Frameset

• Frame: Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, flat-mount disc, kickstand mount, 144.5 mm OLD hub motor spacing
• Front Fork: FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
• Rear Shock: n/a

Wheels

• Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
• Rear Hub: G2 hub drive motor
• Tires: Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c
• Rims: Bontrager Connection, double-wall, 36-hole, 20 mm width, Presta valve
• Spokes: Stainless Steel 14g
• Wheel size: 50c/li>

Drivetrain

• Pedals: n/a
• Crankset: ProWheel Pro alloy, 42T narrow-wide steel ring, 170 mm length (S-M), 175mm (L-XL)
• Front Derailleur: n/a
• Rear Derailleur: Shimano Altus M2000, long cage
• Shifters: Shimano Altus M2010, 9-speed
• Bottom Bracket: Torque sensor, T47 threaded, 122.5 mm spindle

Components

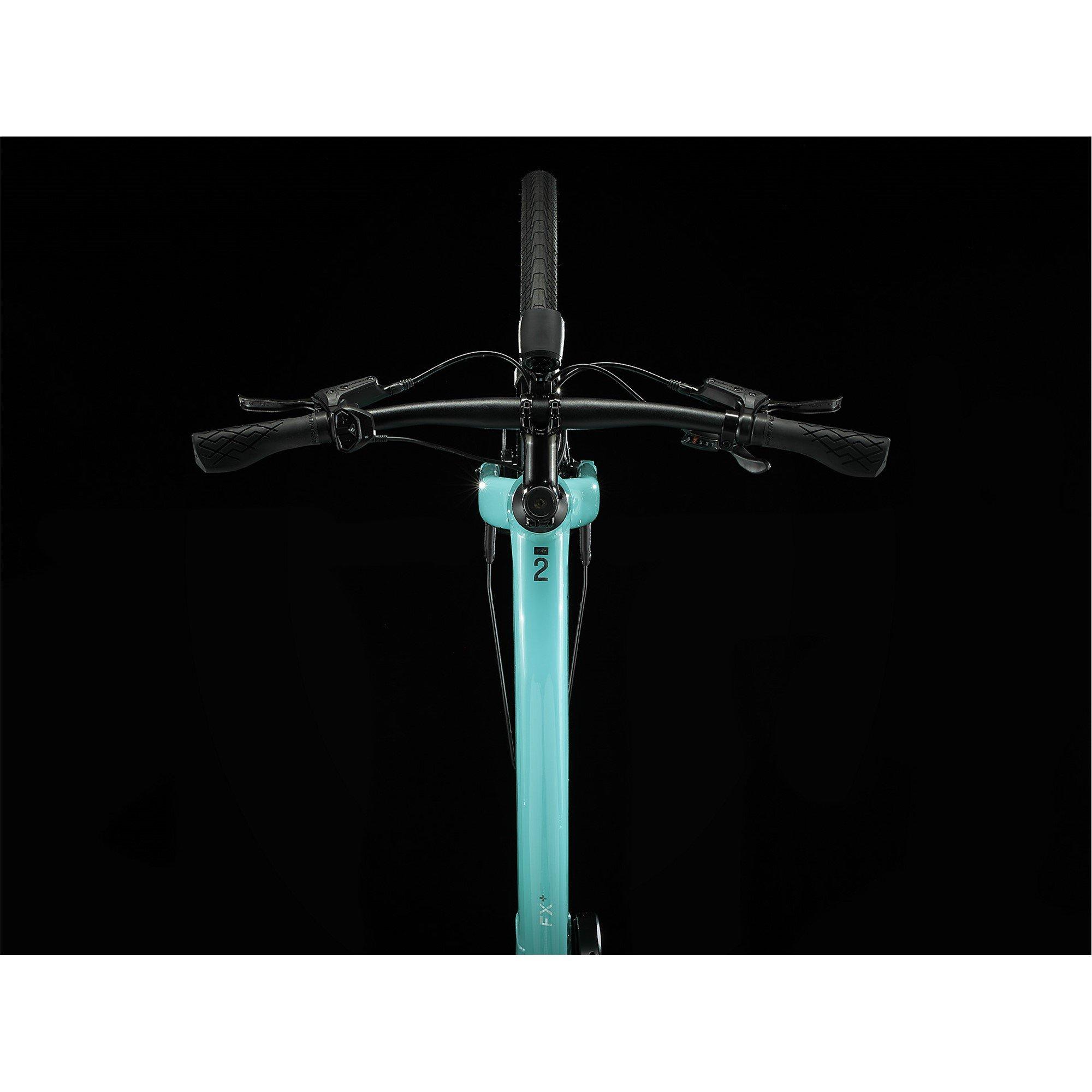

• Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 600 mm width (S-M), 660mm width (L-XL)
• Grips: Bontrager XR Endurance Comp, lock-on
• Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length (S-M), 100mm length (L-XL)
• Brakes: Promax DSK-927 hydraulic disc, flat mount, 160 mm rotor
• Saddle: Bontrager Sport
• Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length (S-M), 400mm length (L-XL)

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.
