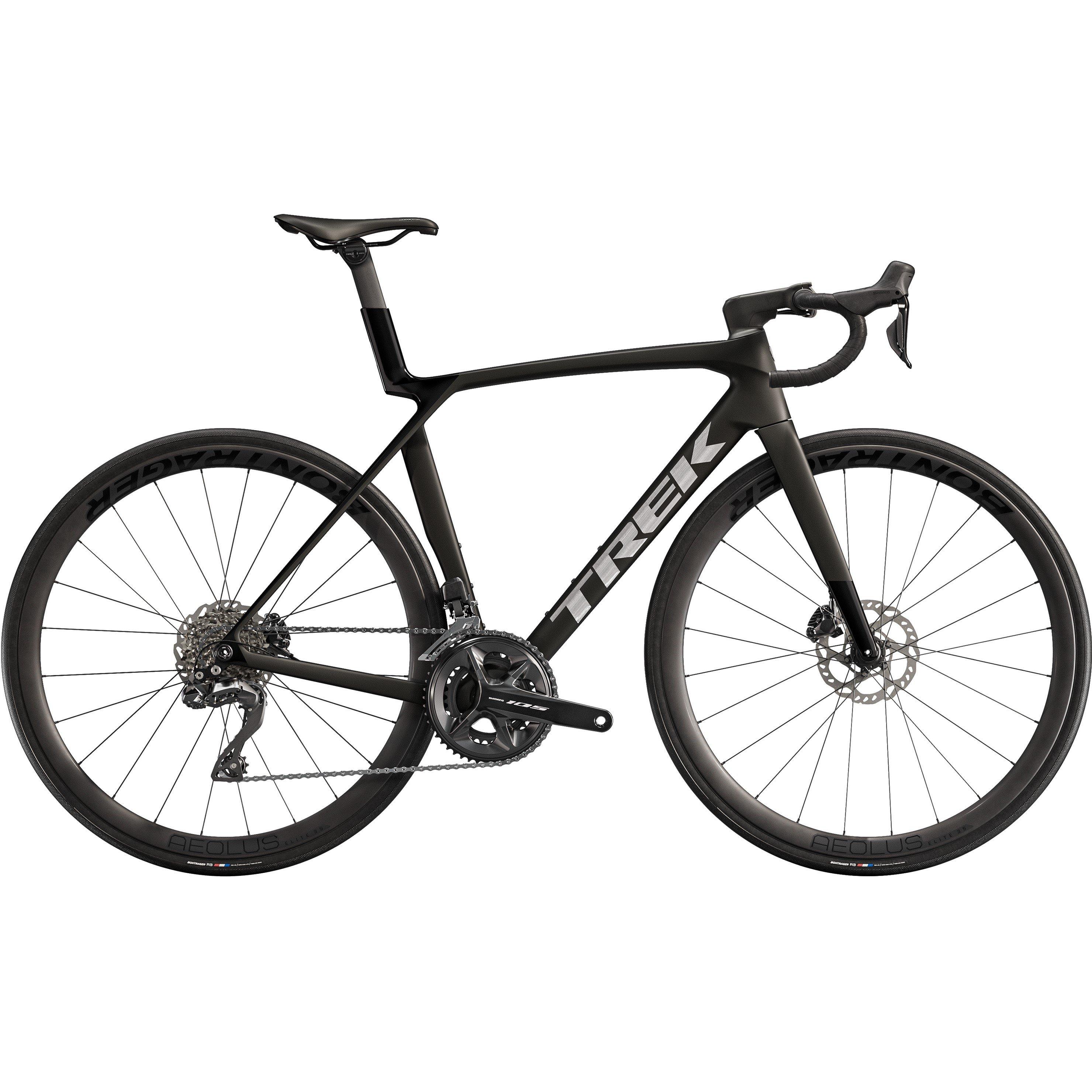

About the Madone SL 6 Gen 8

The Madone SL 6 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point. It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It's built to race with geometry that keeps you comfortable on the climbs and perched for the attack. A Shimano 105 Di2 electronic group set keeps the price down without sacrificing lightning-fast electronic shifting. Plus, it's topped off with carbon wheels for extra lightweight performance.

The tech you get - An ultra-light OCLV 500 Carbon frame with aero tubing and IsoFlow comfort technology. A 2x12 Shimano 105 Di2 electronic group set that delivers clean shifts thanks to trickle-down tech. Plus, it's topped off with Bontrager Aeolus Elite 35 carbon wheels that come set up tubeless.

Key Features

• The Revolutionary Full System Foil aero tube shapes redefine what fast looks like and help optimise aerodynamics around the whole bike
• A more economical 500 Series OCLV Carbon frame and new tube shaping shave weight where it matters most to help you fly up climbs
• Carbon wheels keep weight down and performance up, so you can crush climbs and soar down descents
• You get lightning-fast shifts that stay crisp and clean thanks to Shimano's Di2 tech trickling down to their 105 group set
• Lightweight, race-focused IsoFlow comfort tech helps you ride stronger longer without sacrificing weight or aerodynamics
• This bike comes set up tubeless – a first in Trek performance road history

Specifications

Frameset

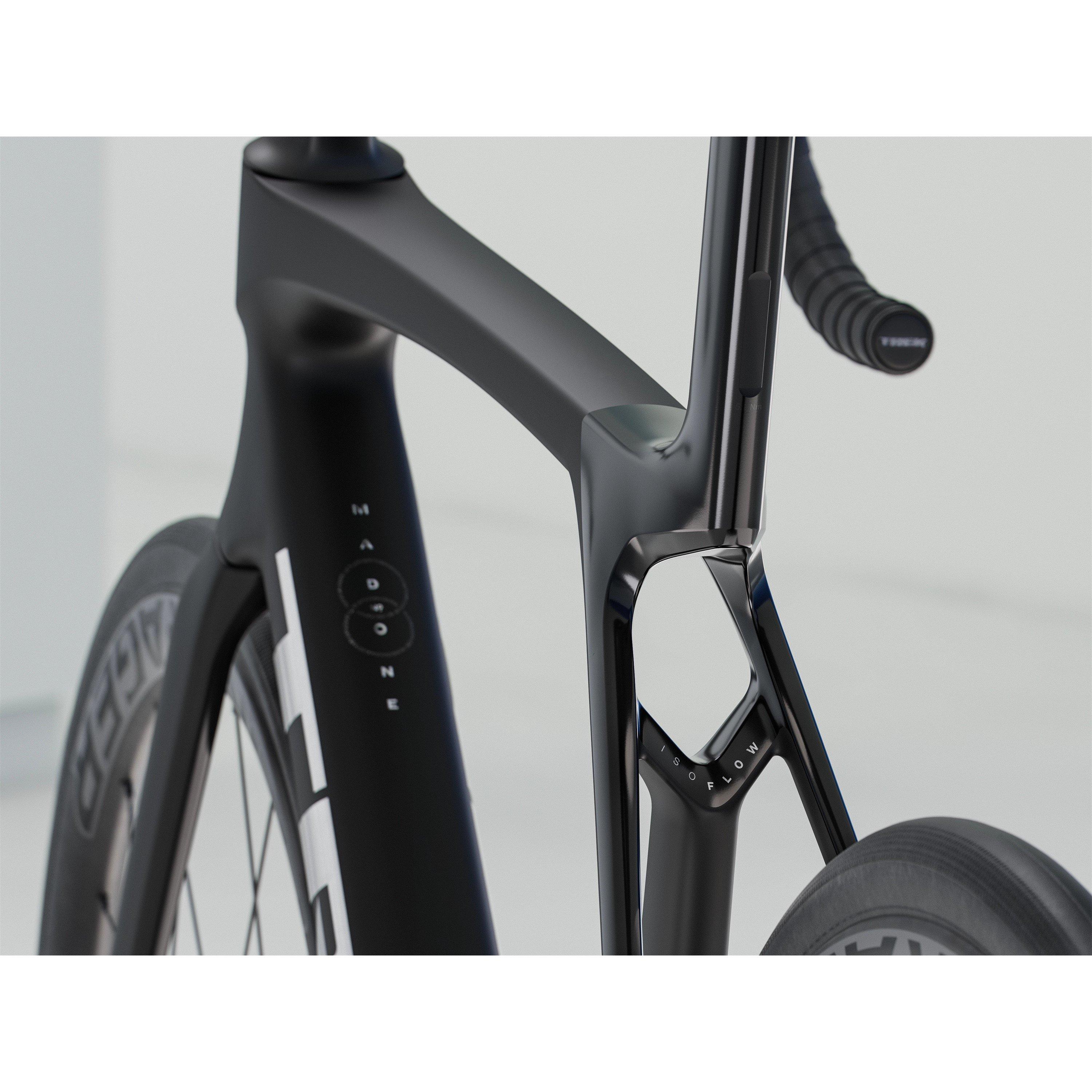

• Frame: 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
• Fork: Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle

Wheels

• Rims: Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth
• Tyres: Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm

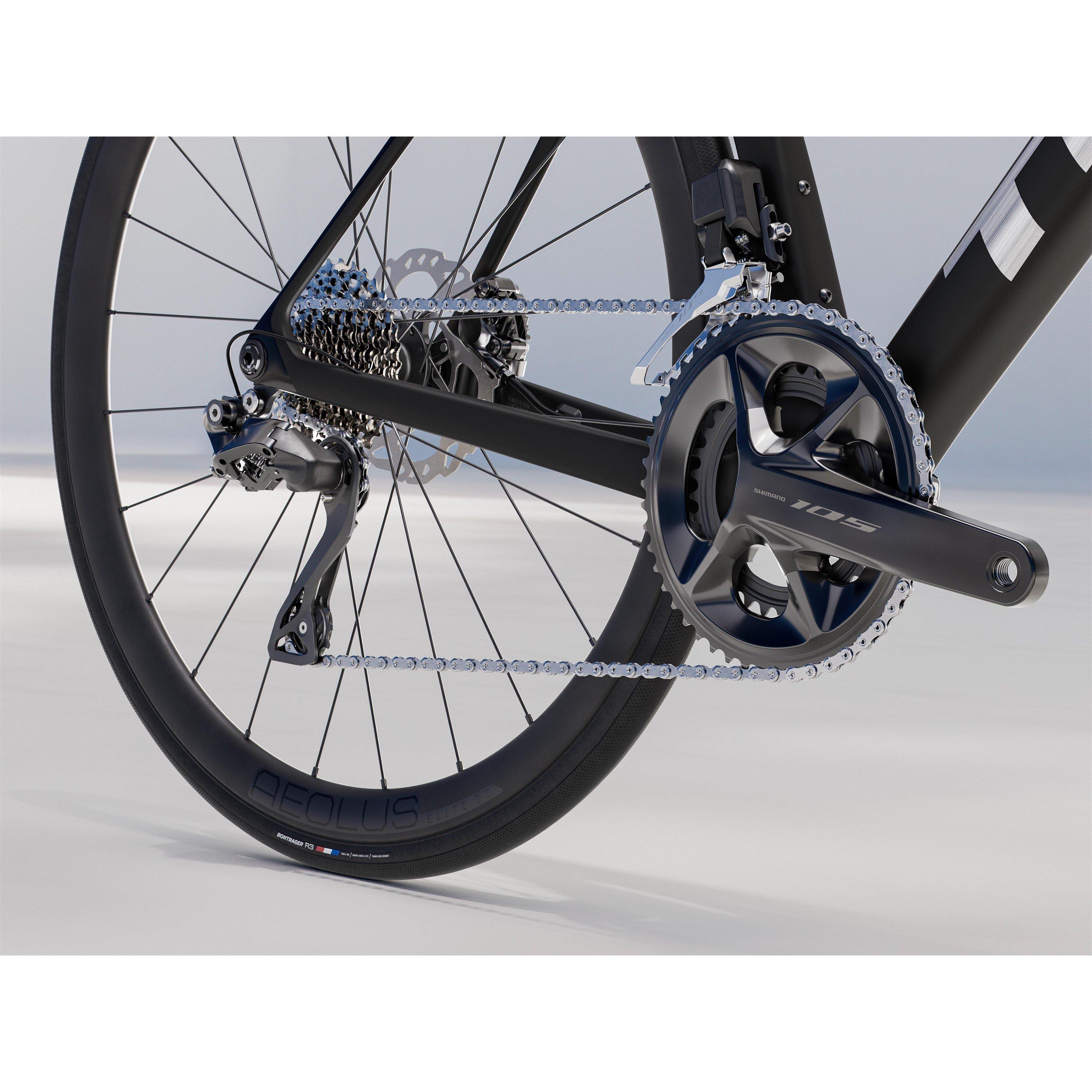

Drivetrain

• Crankset: Shimano 105 R7100, 50/34
• Shifters: Shimano 105 R7100, 50/34
• Front Derailleur: Shimano 105 R7150 Di2, braze-on, down swing
• Rear Derailleur: Shimano 105 R7150 Di2, 36T max cog
• Chain: Shimano SLX M7100, 12-speed
• Cassette: Shimano 105 7101, 11-34, 12-speed

Components

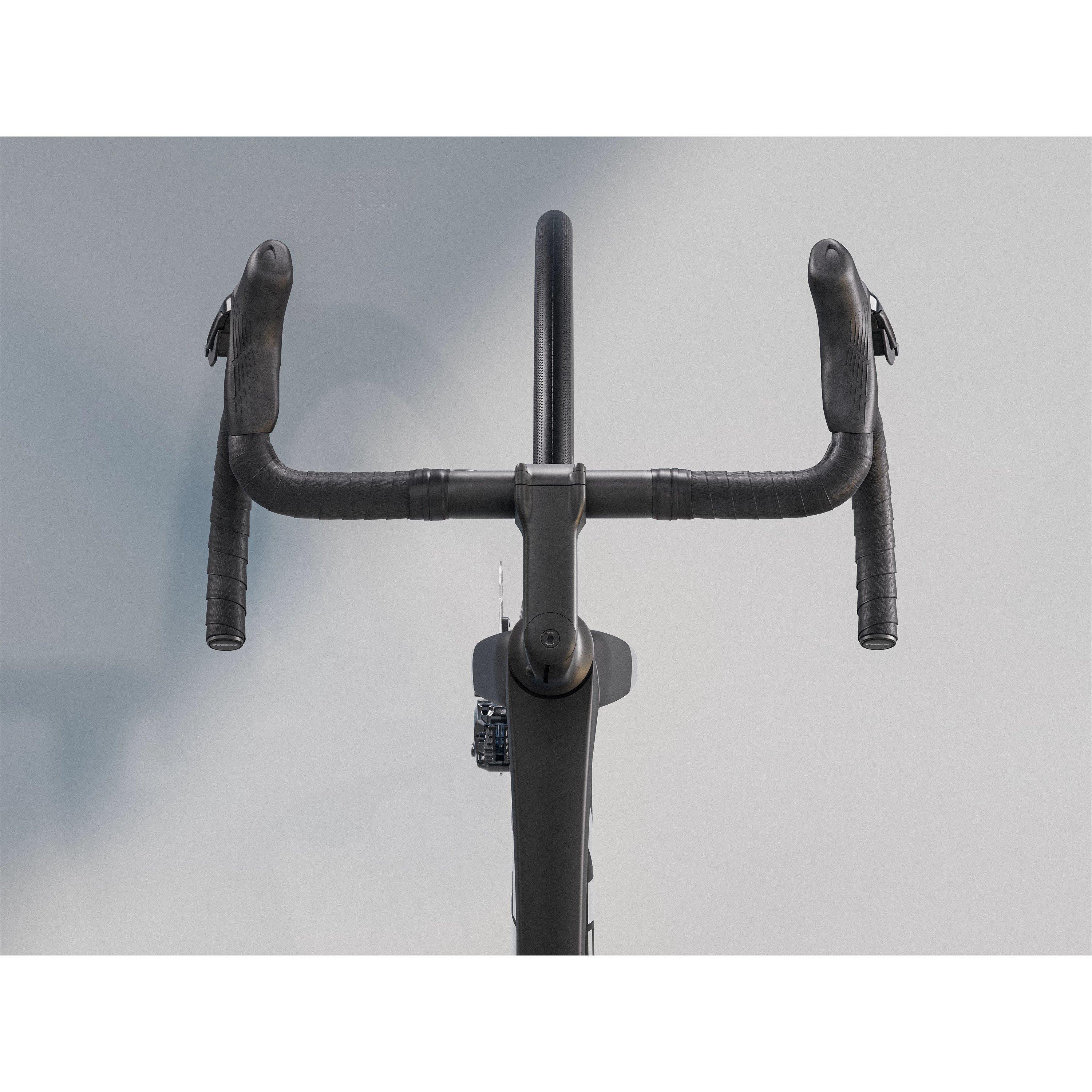

• Handlebar: Bontrager Comp, alloy, 31.8 mm
• Grips: Bontrager Supertack Perf tape
• Saddle: Bontrager Aeolus Comp, steel rails
• Seatpost: Madone aero carbon seat post

Madone Gen 8 Sizing
