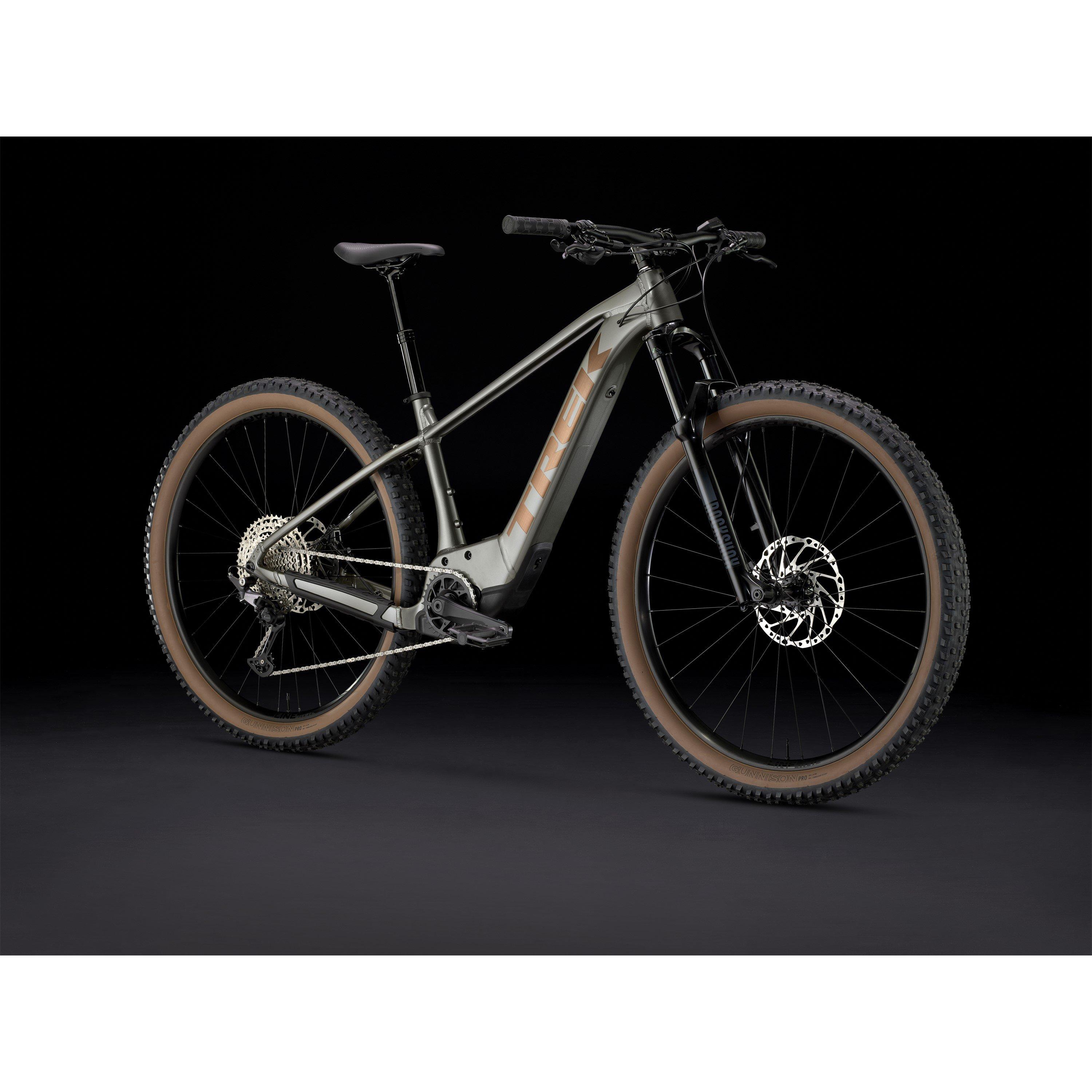

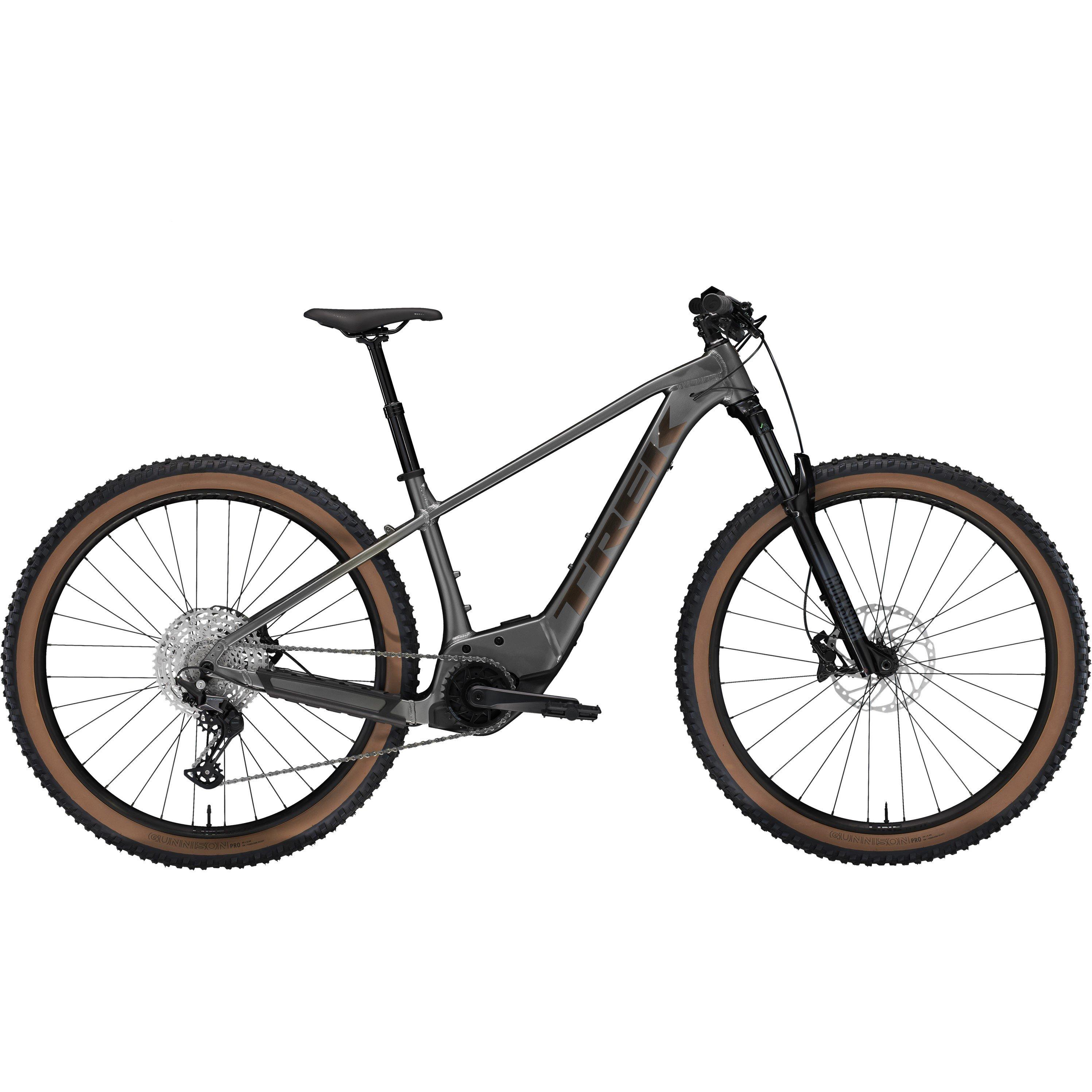

About the All-New Marlin+ 8

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

Wheel Sizes: XS,S (27.5 inch) M,L,XL (29 inch)

Key Features

• Its AUTO mode adaptive motor support recognises speed reductions and adjusts assistance automatically
• The 120 mm suspension keeps your ride feeling smooth through bumps, roots and rough stuff
• The Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
• Trail-savvy geometry keeps handling easy and confident from singletrack to city streets

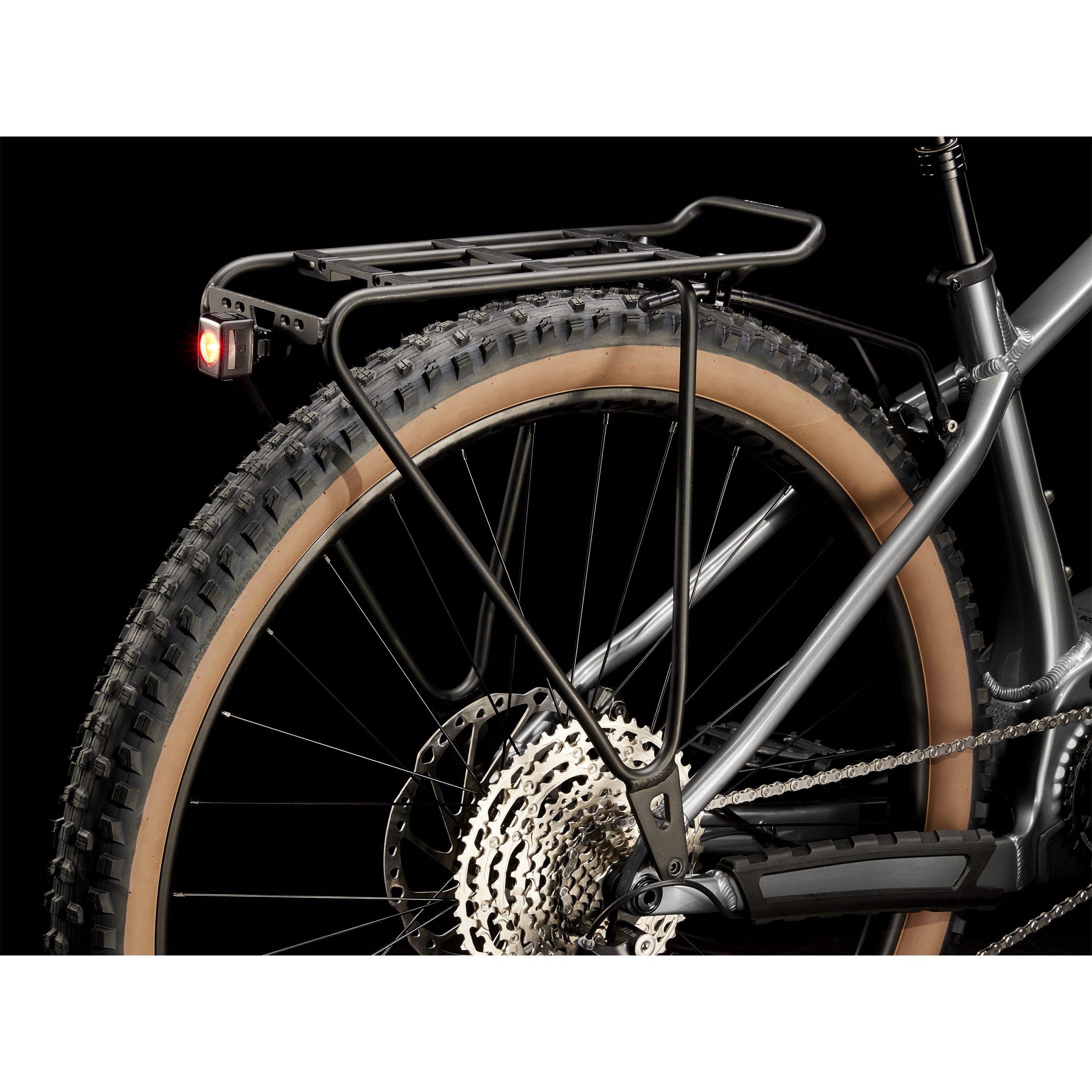

• Tons of rack and mudguard mounts let you customise your ride for the trail or taking on daily commutes

Specifications

Frameset

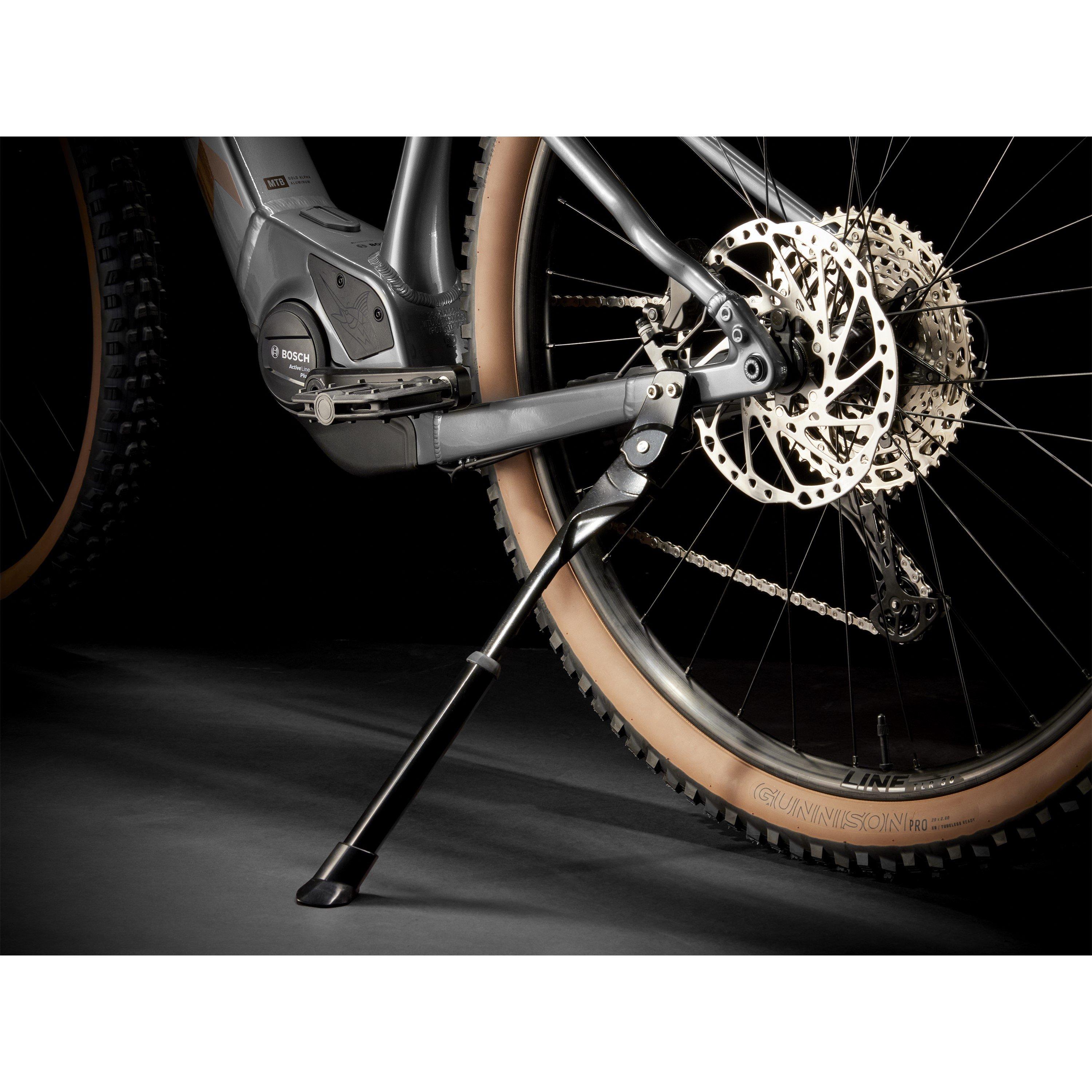

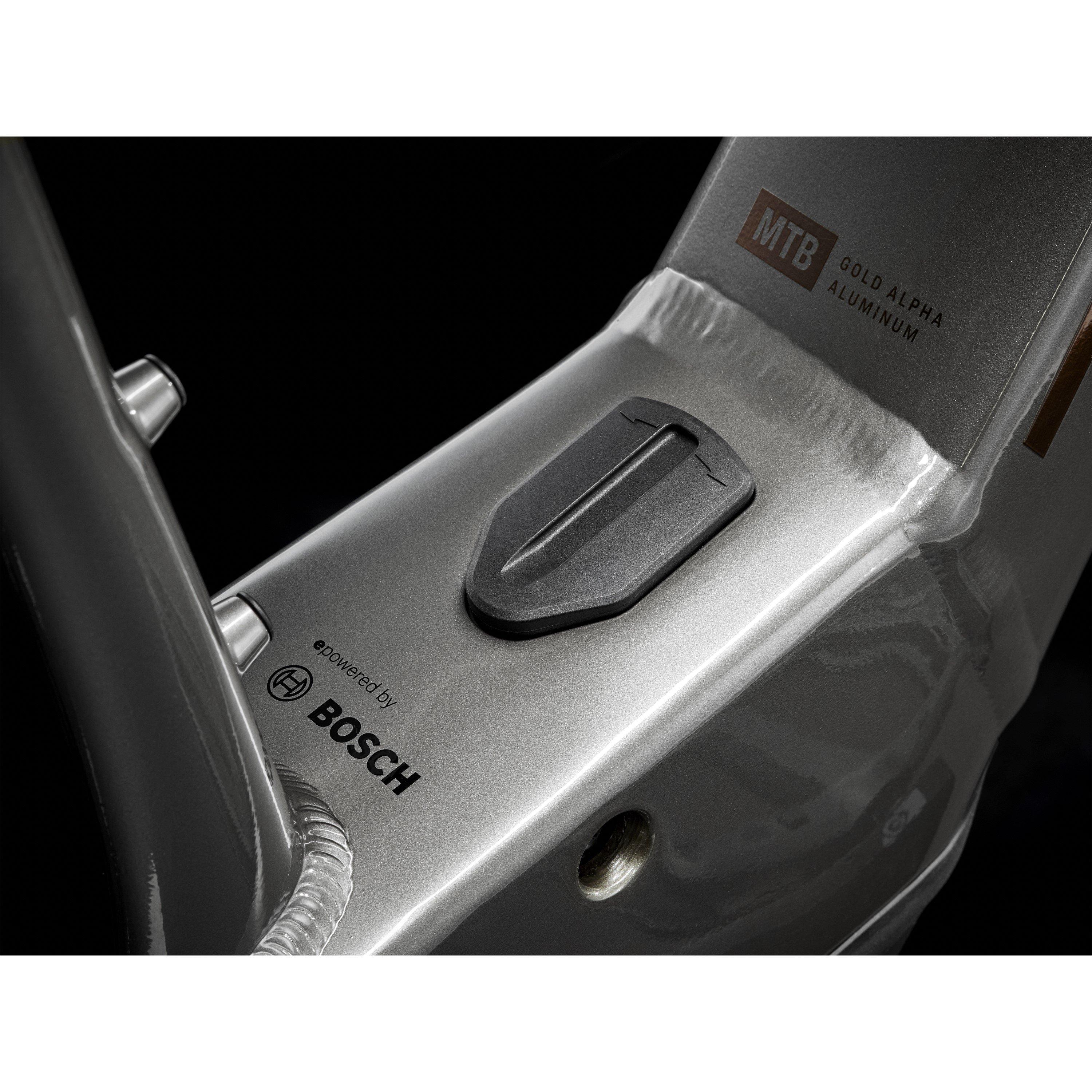

• Frame: Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle

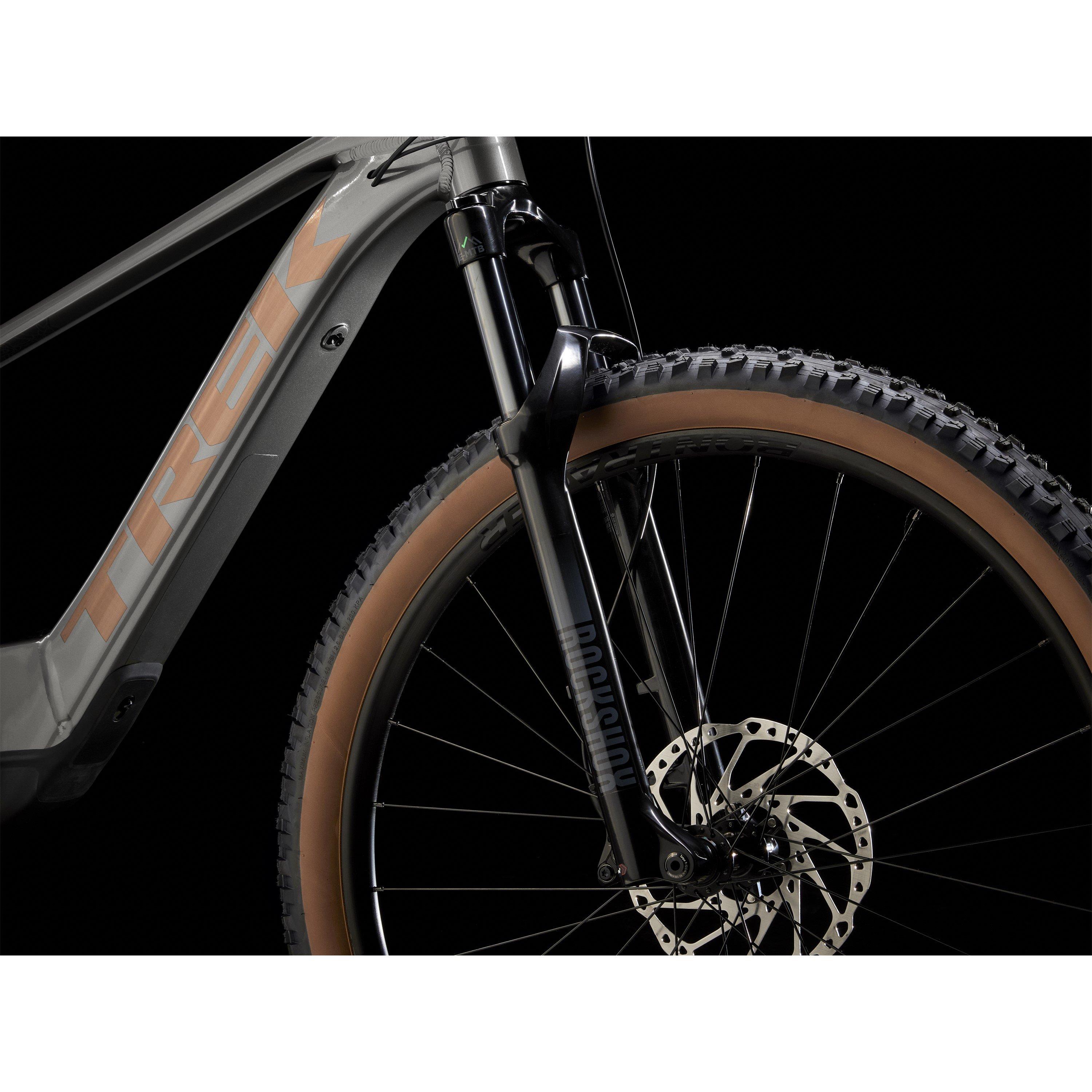

• Fork: RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 120 mm travel (100mm on XS)

Wheels

• Rims: Bontrager Line TLR 30, Tubeless-Ready, 28-hole front, 32h rear, Presta valve
• Tyres: Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60

Drivetrain

• Pedals: VP-536 nylon platform
• Crank: FSA CK-220, 165 mm length
• Chainring: FSA, 32T, steel

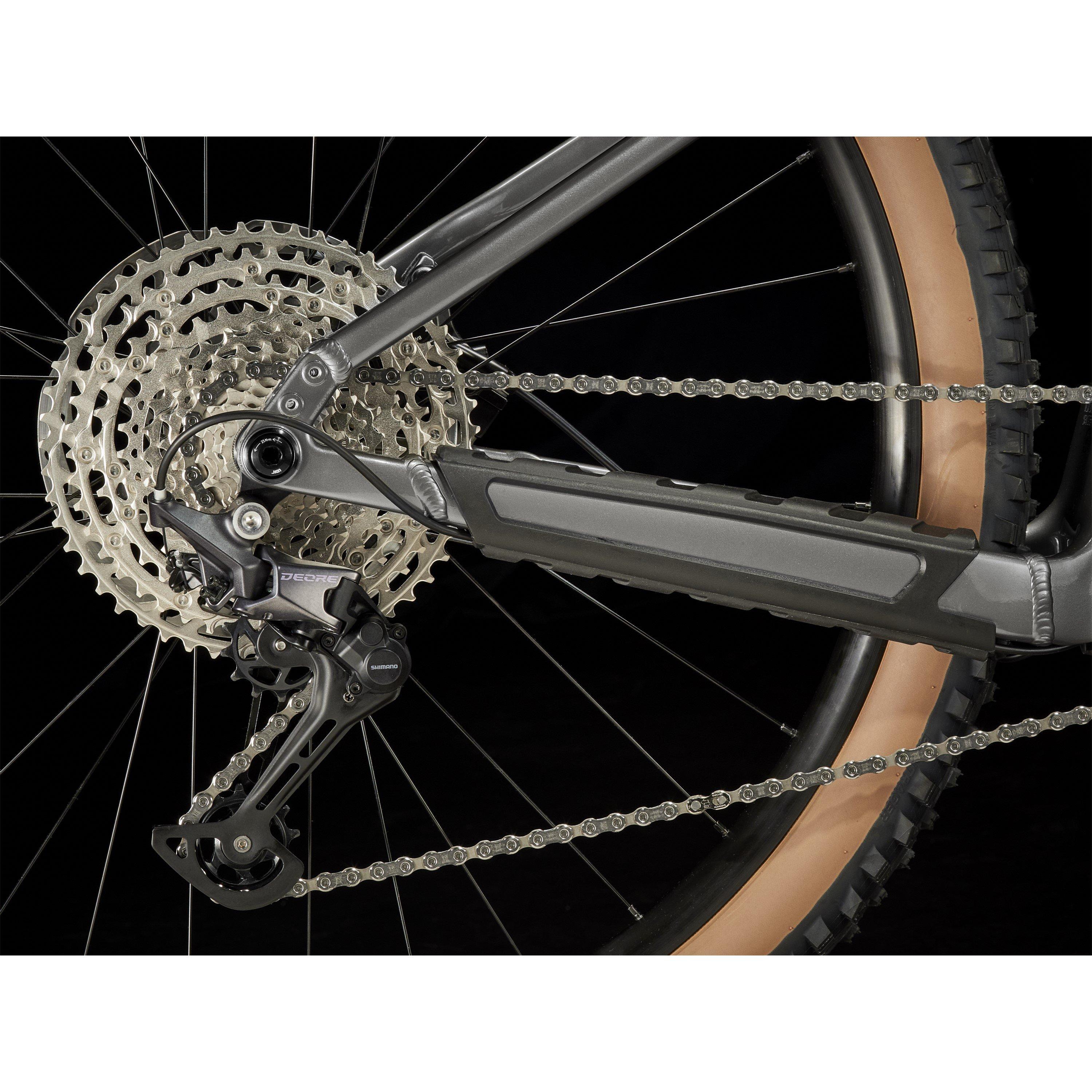

• Rear Derailleur: Shimano Deore M6100, long cage
• Shifters: Shimano Deore M6100, 12-speed
• Chain: Shimano Deore M6100, 12-speed
• Rear Cogs: Shimano Deore M6100, 10-51, 12-speed

Components

• Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise
• Grips: Bontrager XR Endurance Comp, lock-on
• Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree
• Headset: Semi-integrated, loose ball bearing, 1-1/8 top, 1.5 bottom
• Rotors: Shimano RT64, CentreLock, 203 mm
• Brakes: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper

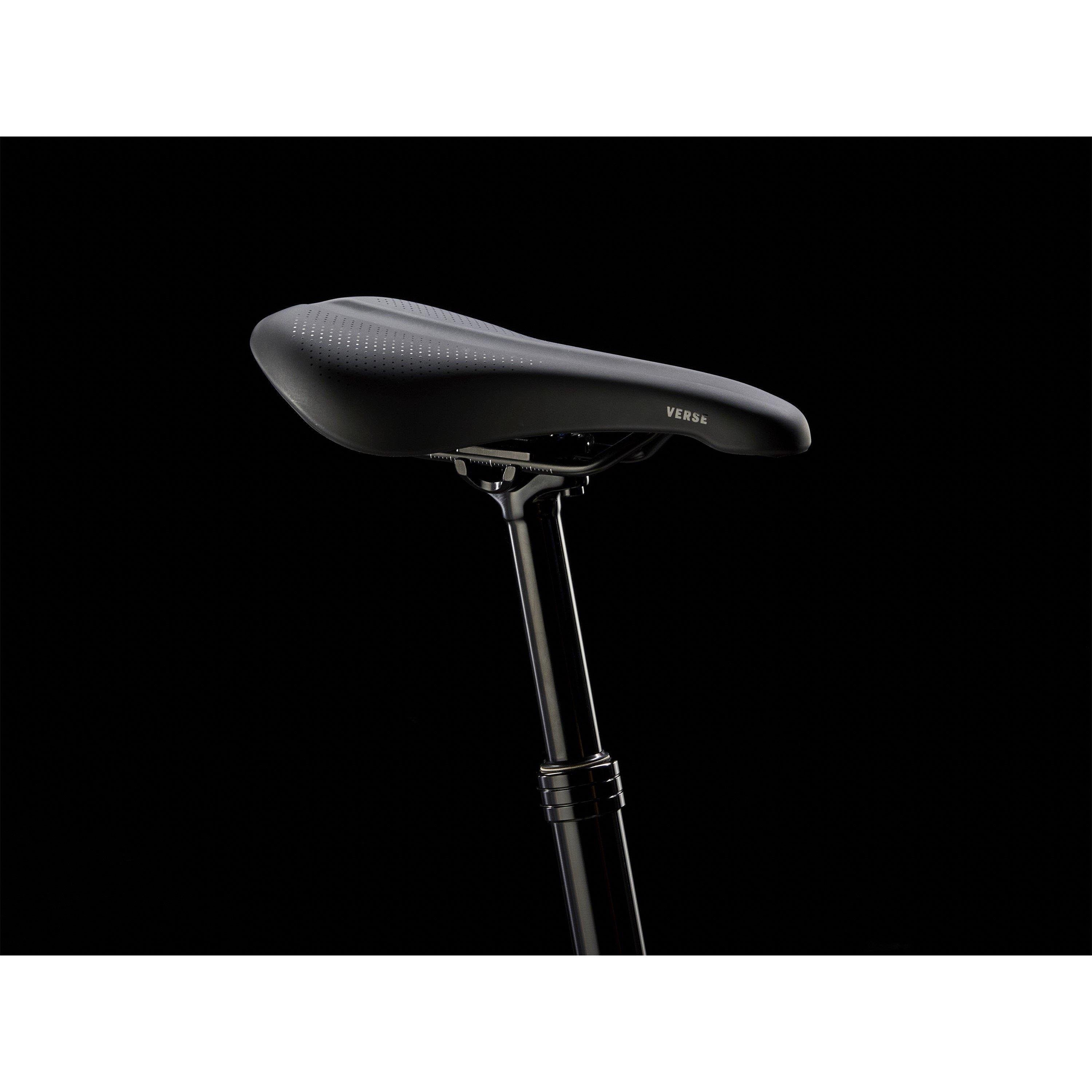

• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: TranzX JD-YSP18, 150 mm travel, internal routing, 31.6 mm, 470 mm length (100 mm travel, internal routing, 31.6 mm, 361 mm length on size XS, S)

Electric System

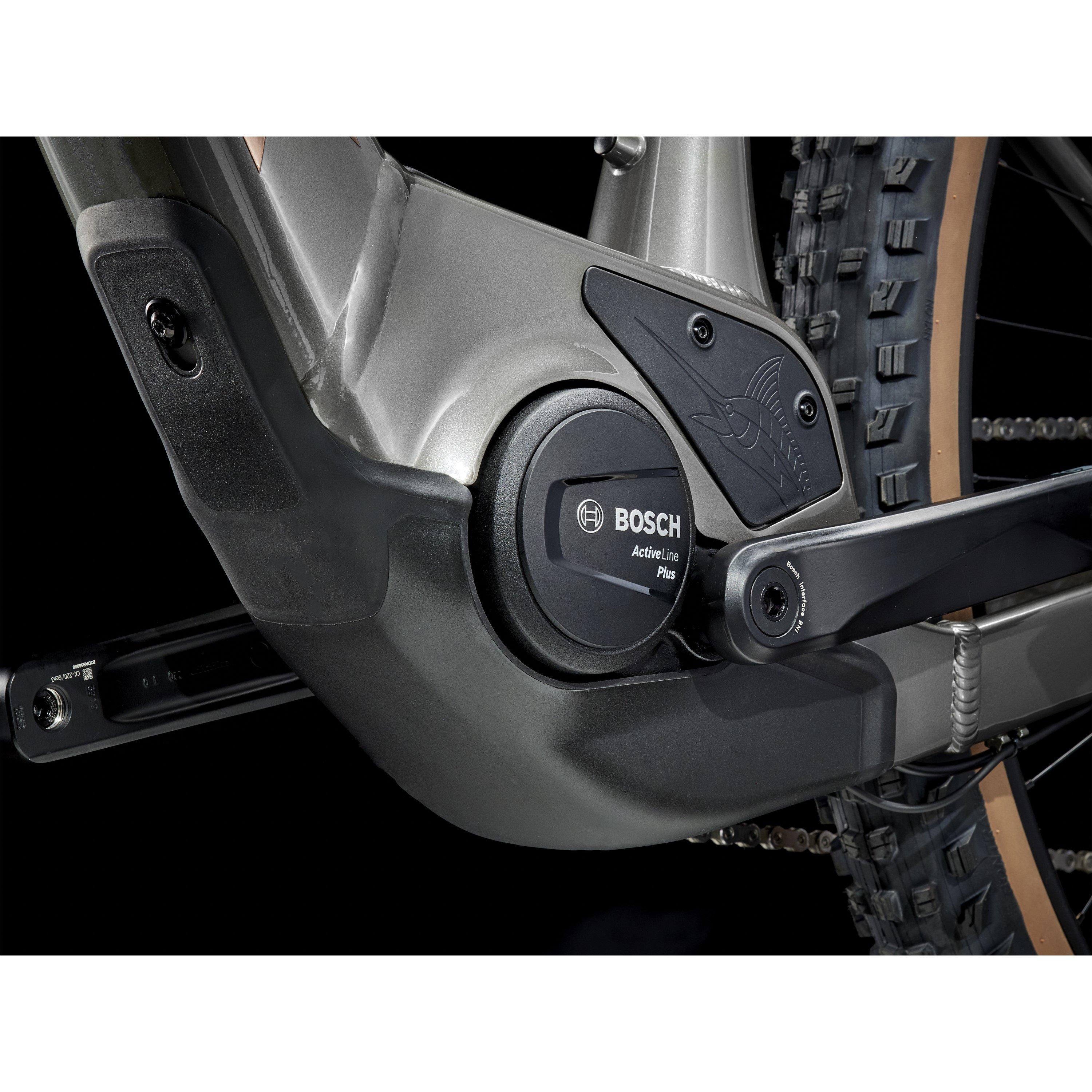

• Motor: Bosch Active Line Plus
• Battery: Bosch CompactTube 400 Wh

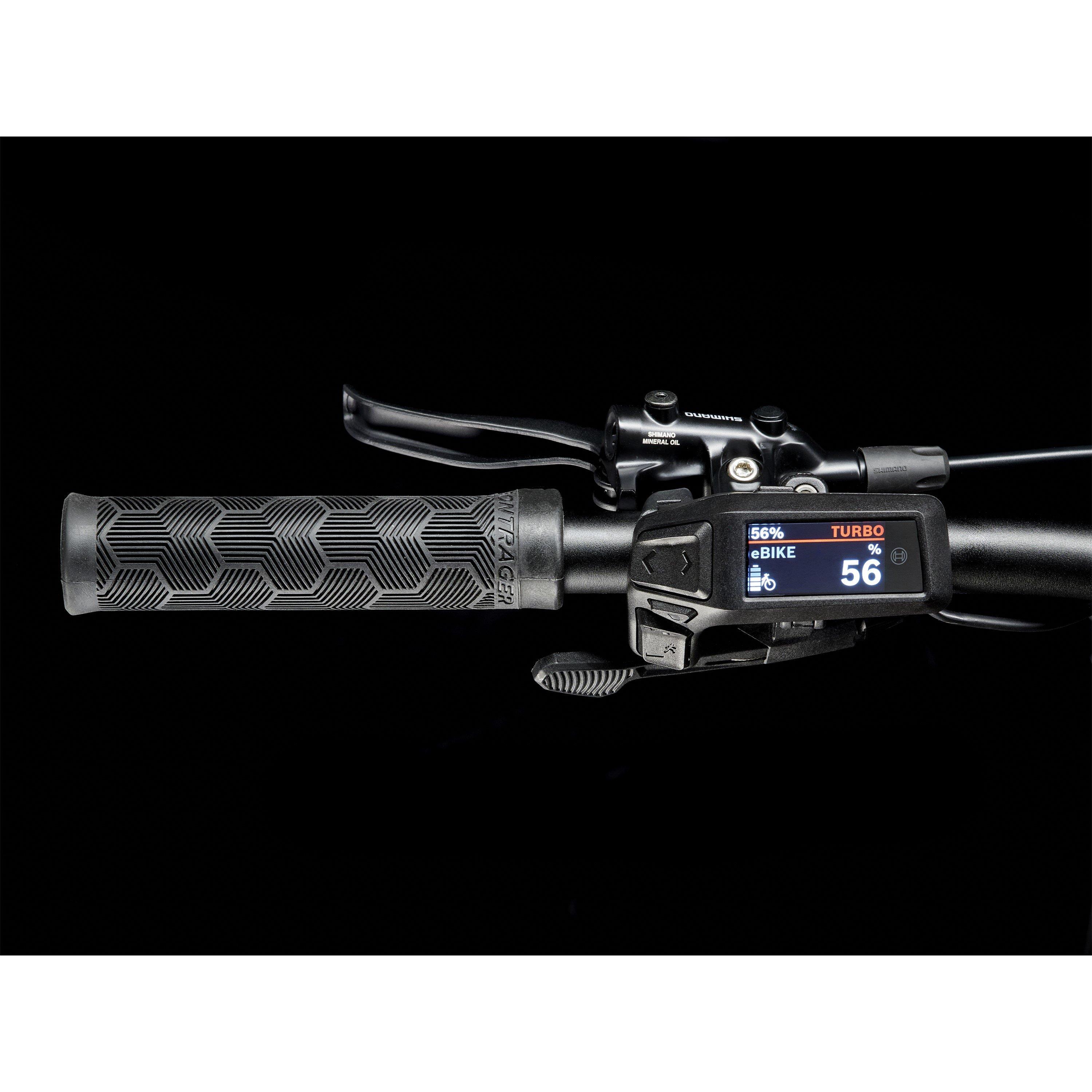

• Computer: Bosch Purion 200
• Charger: Bosch standard 2A, 230V, smart system
