Description
Product code: 917757

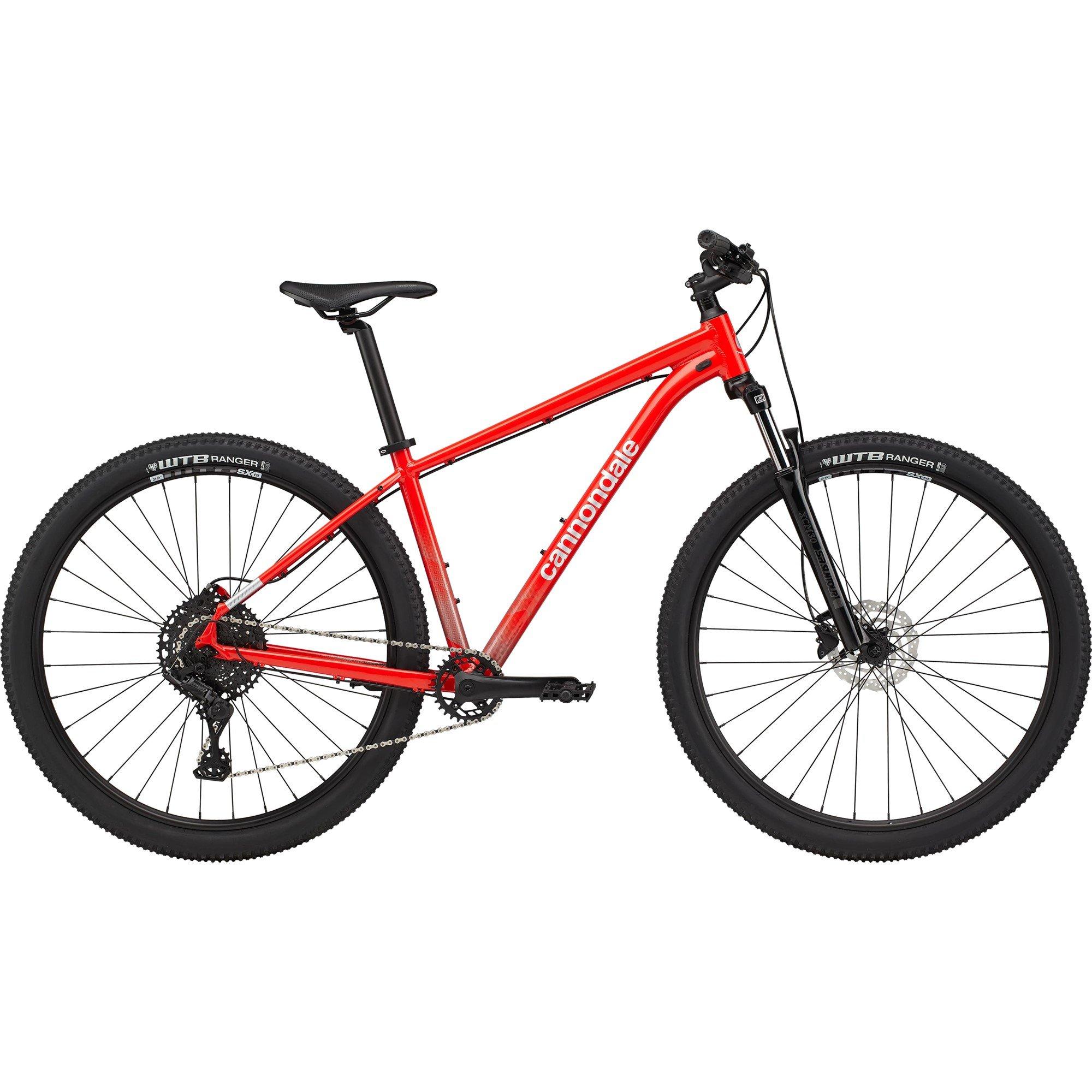

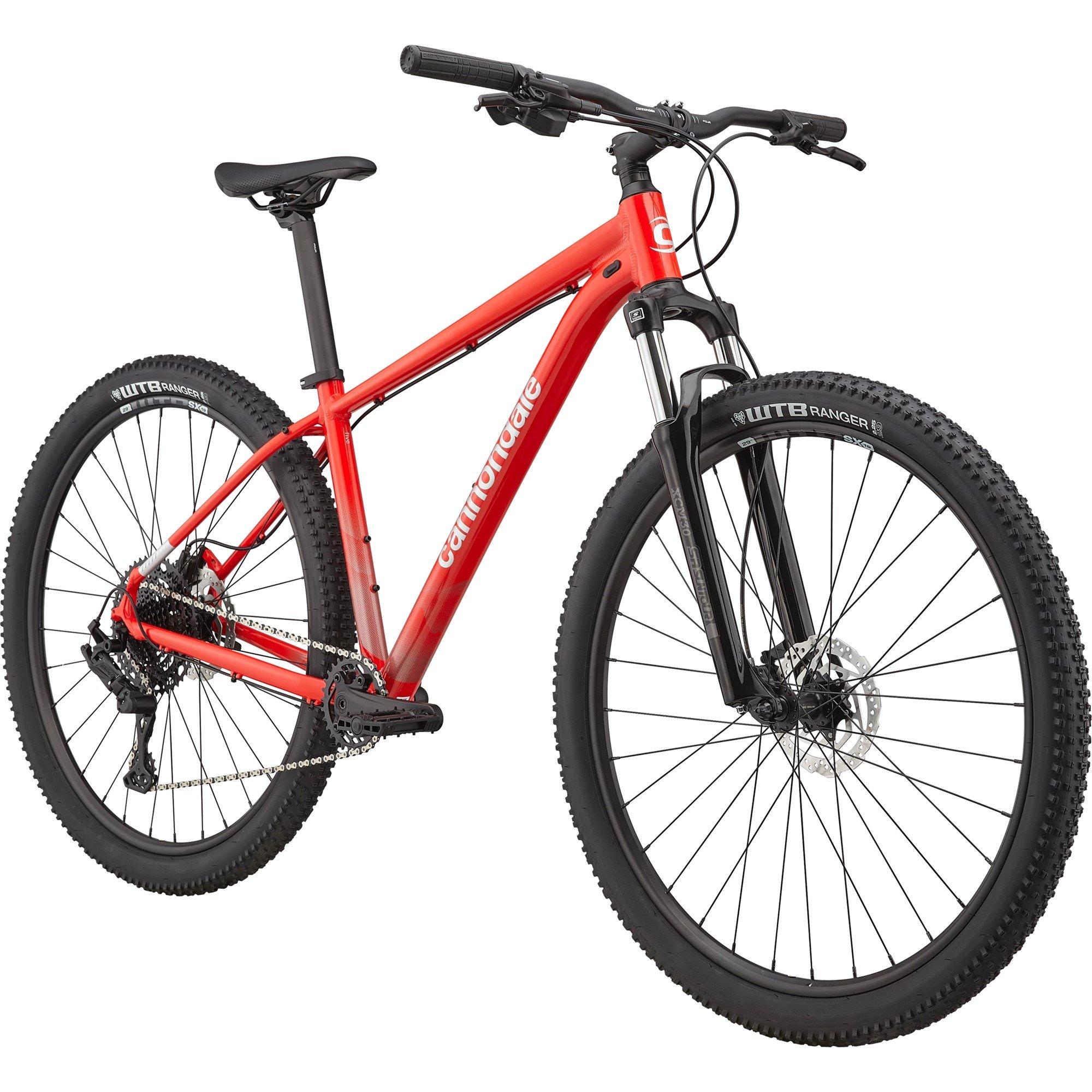

About the Trail 5
Level Up: A mountain bike built to raise your game and ignite a passion for the trail. Designed for the mountains and ready for anything.
Where it thrives: Low-impact trails, gravel roads, leisurely ride
What it’s built for: Handling, durability
Key Features
- Light and durable SmartForm C3 Alloy frame
- SR Suntour XCM30 suspension fork, 100mm travel, remote lockout
- Shimano Deore 10-speed drivetrain w/ double chainring crank
Specifications
Frameset
- Frame: SmartForm C3 Alloy, SAVE, 1-1/8 headtube, post mount disc, StraightShot internal cable routing, dropper post compatible, BSA-73
- Fork: SR Suntour XCM30, 100mm, remote lockout, coil, 42mm offset (27.5), 46mm offset (29)
Wheels
- Rims: WTB SX19, 32h
- Hubs: Shimano HBTX 505
- Tyres: Schwalbe Rocket Rick, 29x2.25 (27.5x2.25 - XS, SM), K-Guard
Drivetrain
- Pedals: N/A
- Front Derailleur: Shimano Deore M4100, 34.9 clamp
- Rear Derailleur: Shimano Deore M4100
- Shifters: Shimano Deore M4100, 10-speed
- Chain: KMC X10, 10-speed
- Crankset: FSA Omega AGX+ Alloy, 46/30
- Rear Cogs: Sunrace, 11-42, 10-speed
Components

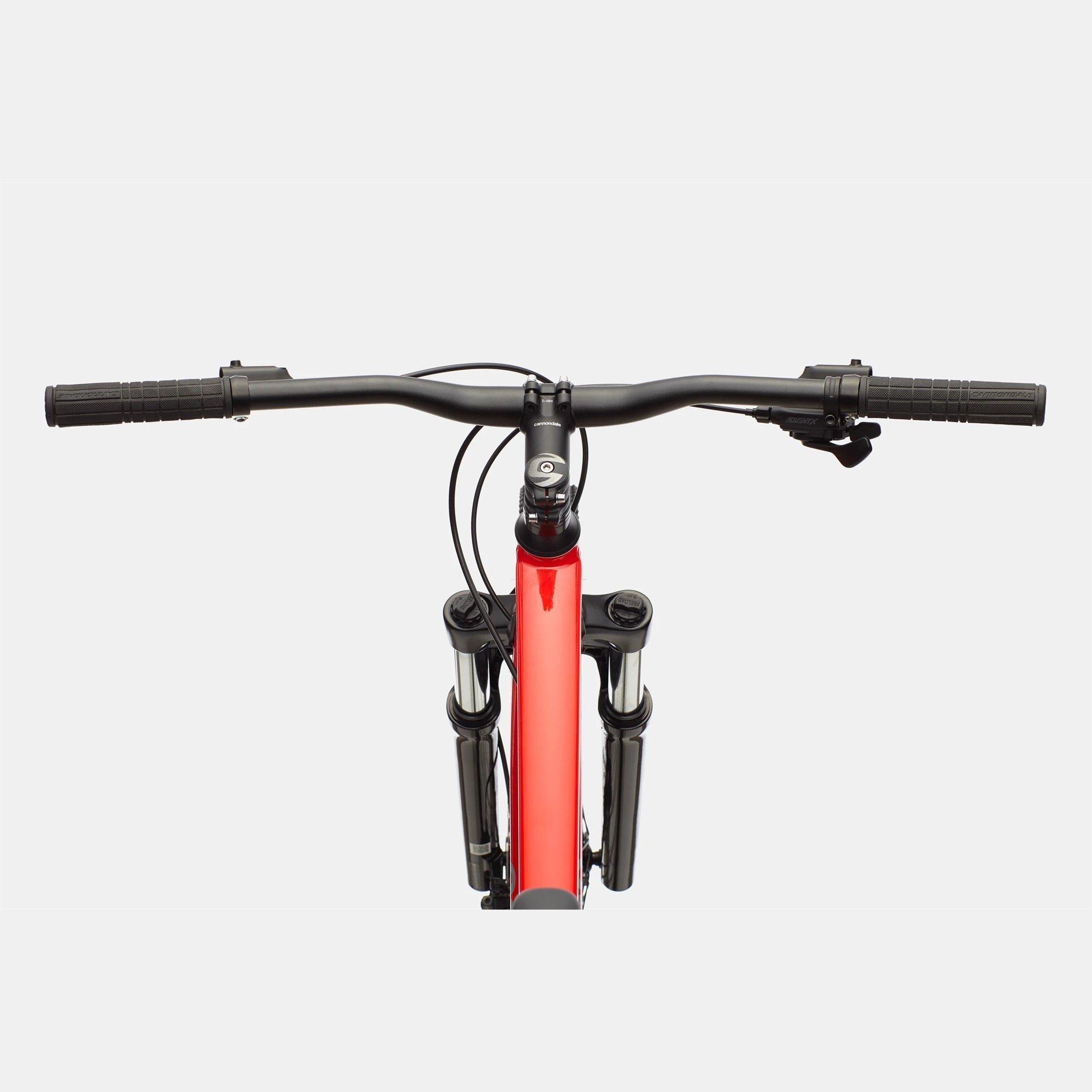

- Handlebar: Cannondale Riser, 6061 Alloy, 25mm rise, 8 degree sweep, 6 degree rise, 720mm
- Stem: 6061 Alloy, 31.8, 7 degree rise
- Brakes: Tektro M275 hydraulic disc, 160/160mm rotors
- Brake Levers: Tektro hydraulic disc

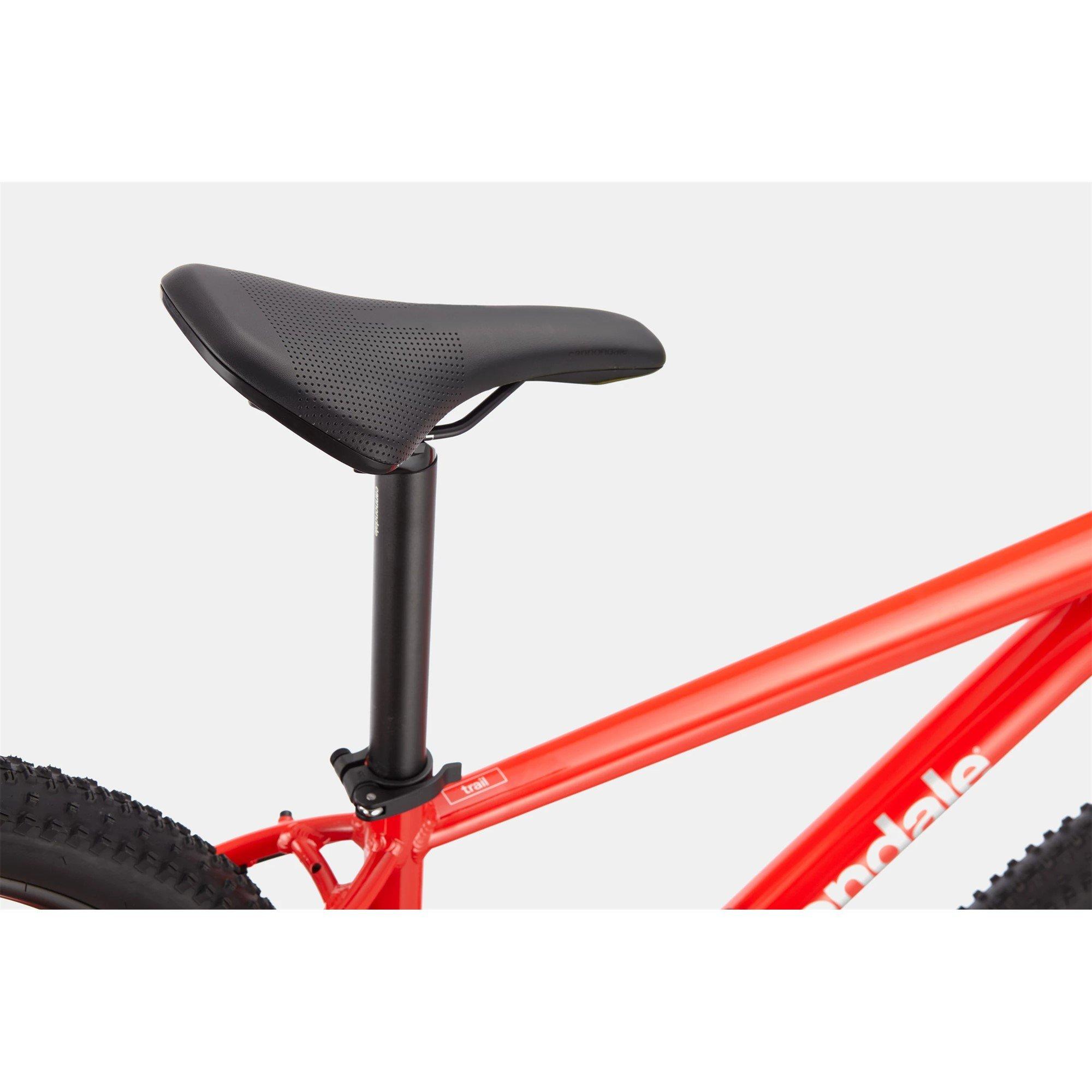

- Saddle: Cannondale Stage 2 Women's
- Seatpost: Cannondale 3, 6061 Alloy, 31.6 x 350mm (XS - SM), 400mm (MD-LG)

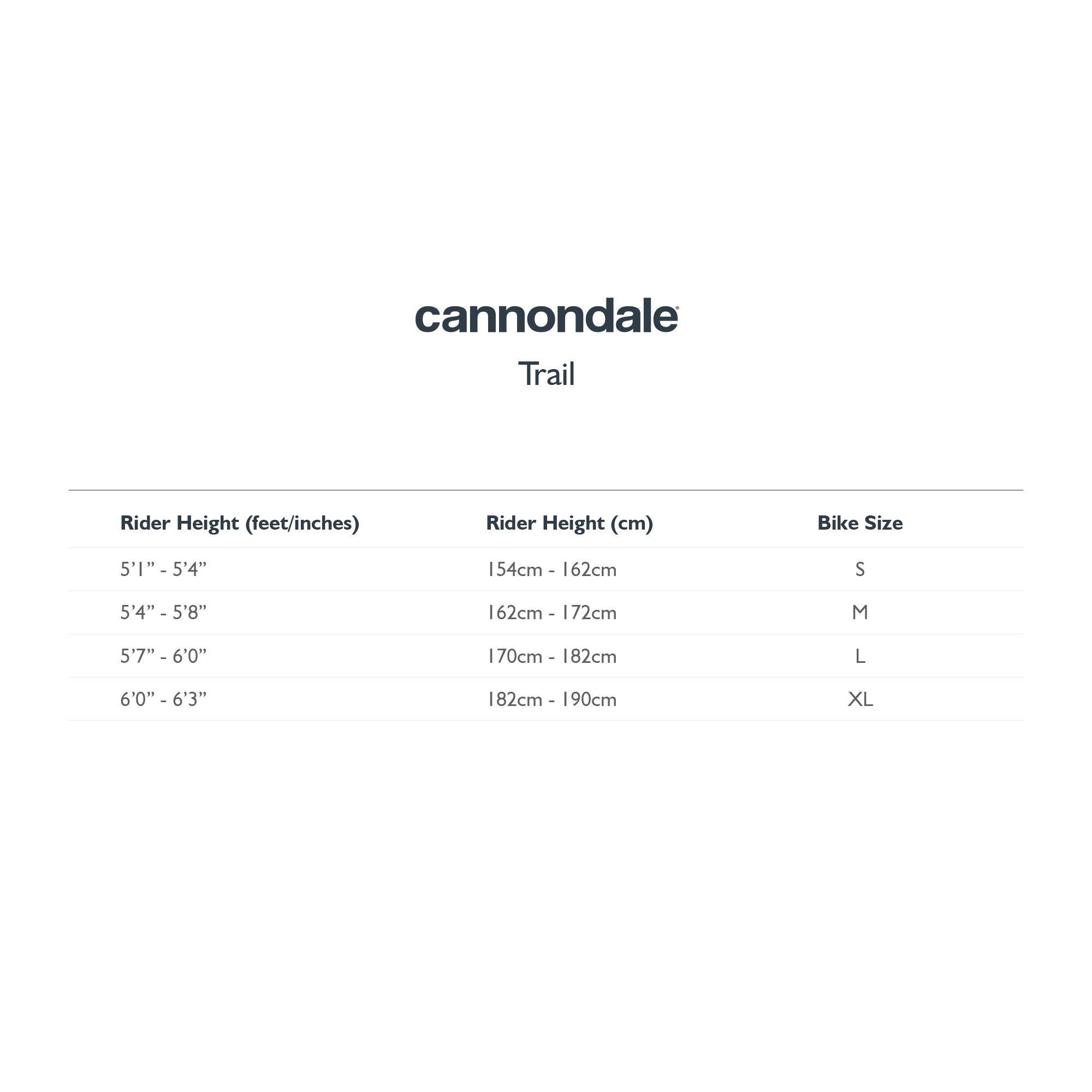

Cannondale Trail Sizing
| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| Rider Height | 4'6 - 5'2 / 137cm - 157cm | 5'1 - 5'4 / 155cm - 162cm | 5'4 - 5'8 / 162cm - 170cm | 5'7 - 6'0 / 170cm - 183cm | 6'0 - 6'3 / 183cm - 192cm | 6'3 - 6'6 / 193cm - 203cm |
Features
- Brake Type
- Hydraulic Disc Hydraulic Disc
- Discipline
- Cross Country Trail
- Frame Material
- Aluminium Aluminium
- Frame Style
- Traditional
- Model Year
- 2022 2023
- Suspension Type
- Hardtail
- Axle Type
- Quick Release
- Wheel Size
- 29 Inch
- Pedals
- Included
