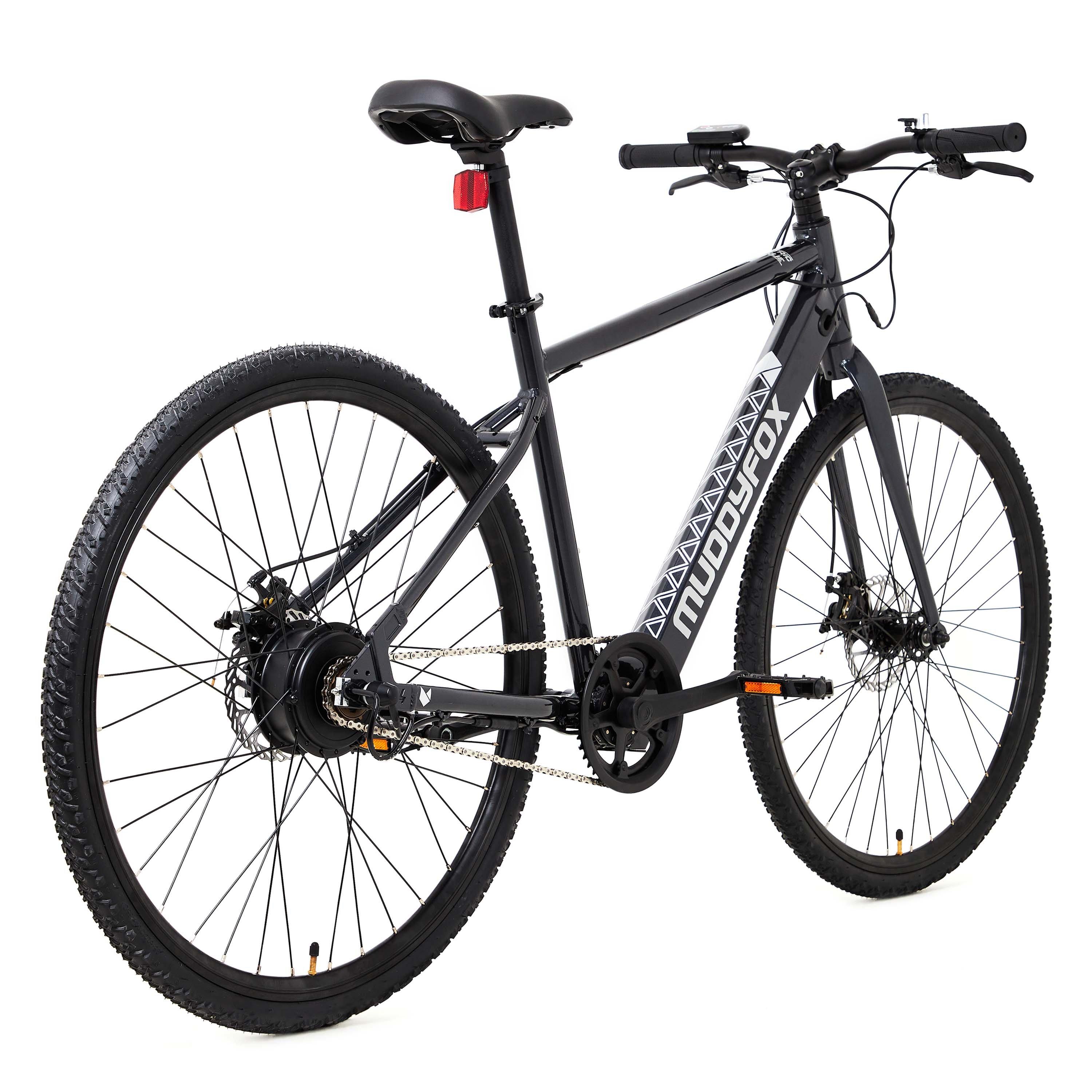

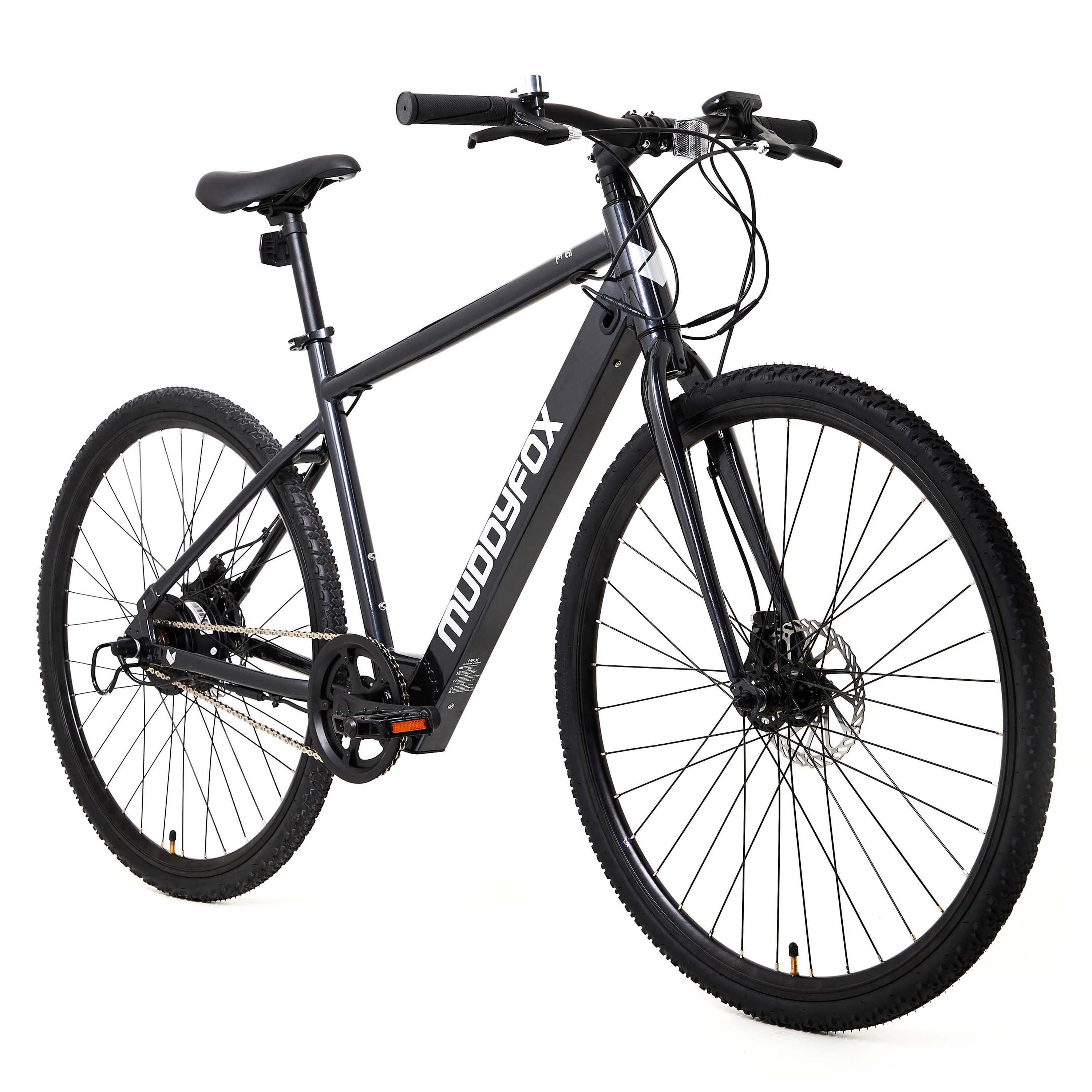

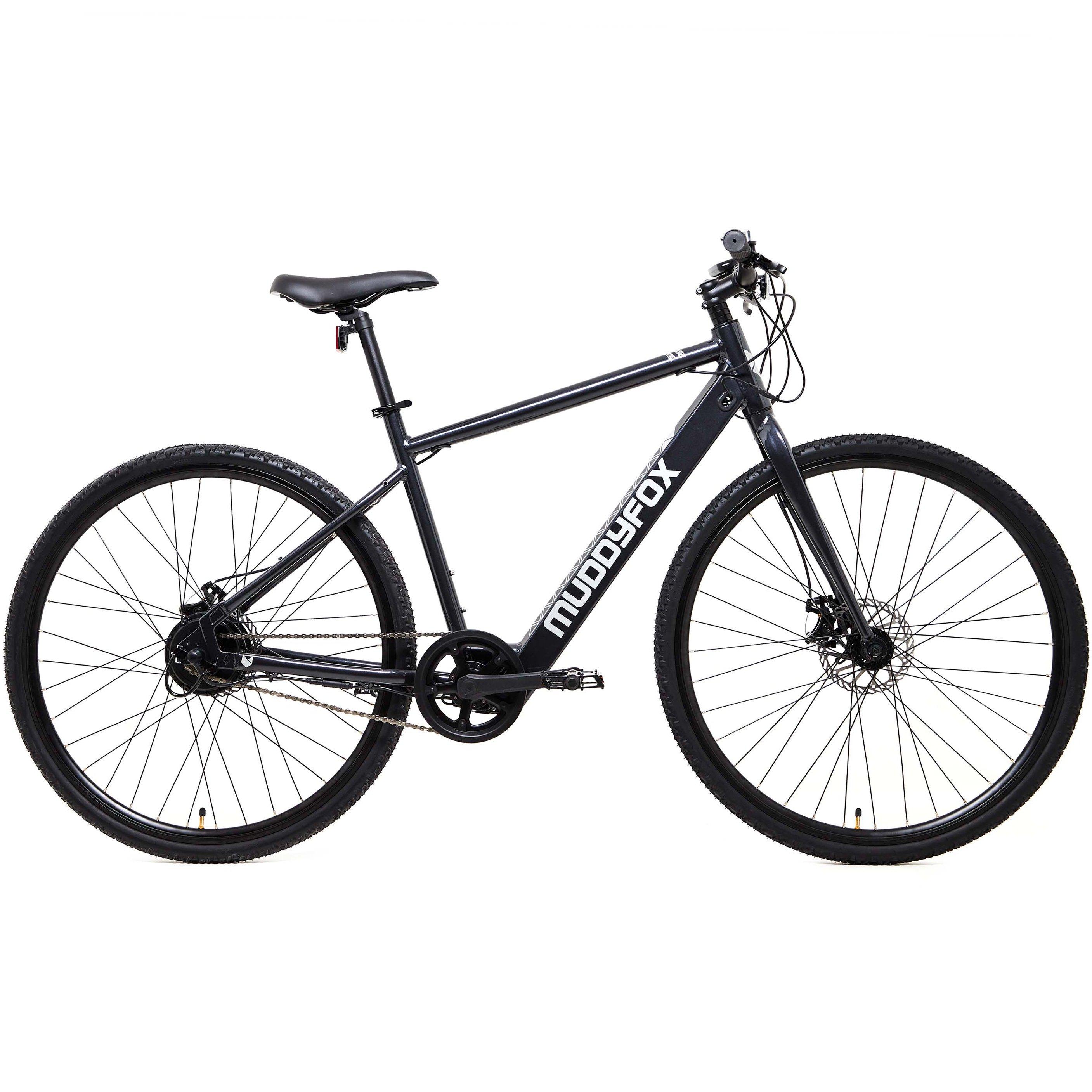

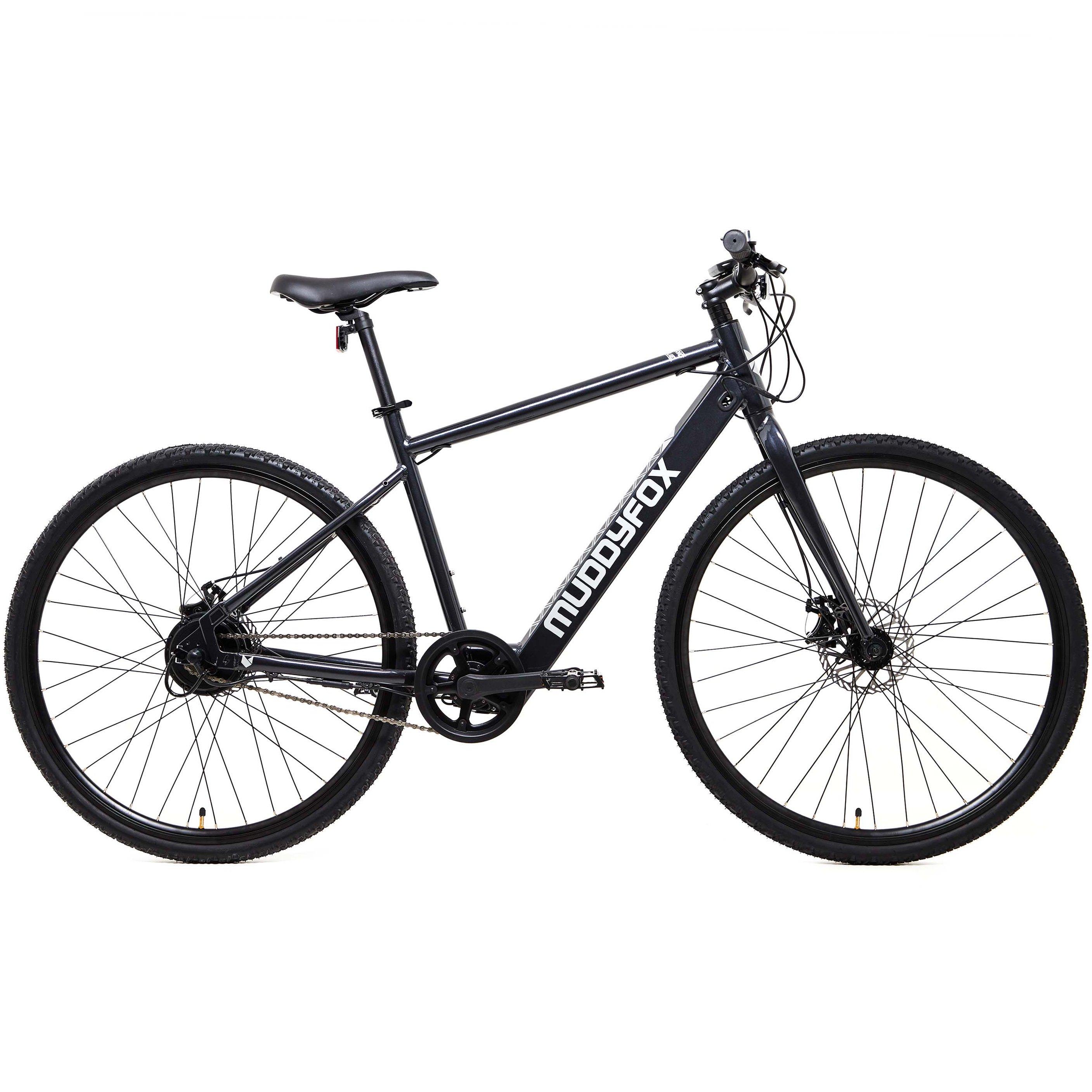

We’re gonna ride on down to Electric Avenue. Riding an e-bike has never been so affordable.

Fully charged and ready to roll, the Muddyfox Electric Avenue gives you that extra boost so that you can keep pace with your cycling friends and enjoy the ride.

Designed with a strong alloy frame, hi-tensile steel forks and disc brakes, at the heart of the bike is a 230Wh Panasonic battery that comes with plenty of power to make light work of any inclines. A handy LED display on the handlebar puts the power at your fingertips.

Cruising along on comfortable 700c x 35c tyres, you’ve got the freedom to ride anywhere, open up new routes and keep pace with your cycling friends.

If you’ve never experienced an e-bike before, the Muddyfox Electric Avenue supercharges your ride for the ultimate fun on two wheels.

Please Note: Paint design and colour shade may vary on this bike.

Key Features

• Panasonic 230Wh battery with 25-28km range and 3-3.5 hours charging time
• LED Display on Handlebar
• Easy to maintain single speed
• Net weight: 18.65kg (19/M)

EASY ASSEMBLY

Your bike will arrive carefully packed from one of our trained experts. To ensure safe shipping, and avoid damage to the bike whilst in transit, some basic assembly is required when it arrives with you. The process is simple and the box includes all the tools and instructions you need to get your bike ride-ready in no time.

You can also select click and collect or take the bike to your local Evans Cycles store who can complete the build and carry out a full safety check (£25 fee applies).

Simply drop in or book a slot

Build instructions can also be found here for reference.

Specifications

Frameset

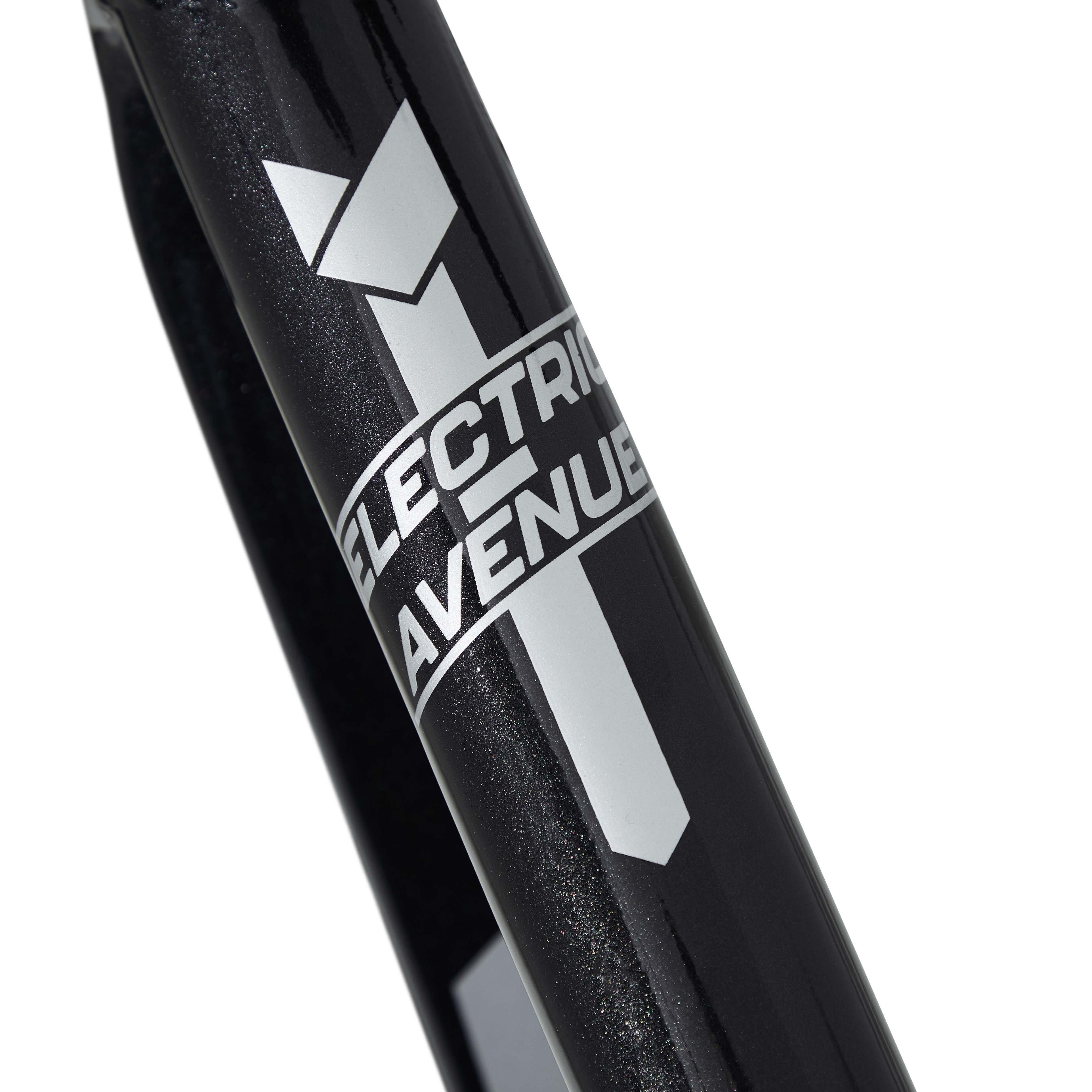

• Frame: Alloy Frame, with disc mount
• Fork: 700C Hi-tensile steel fork, with disc mount

Wheels

• Rims: 700C Alloy, 36H, Double Wall, all black

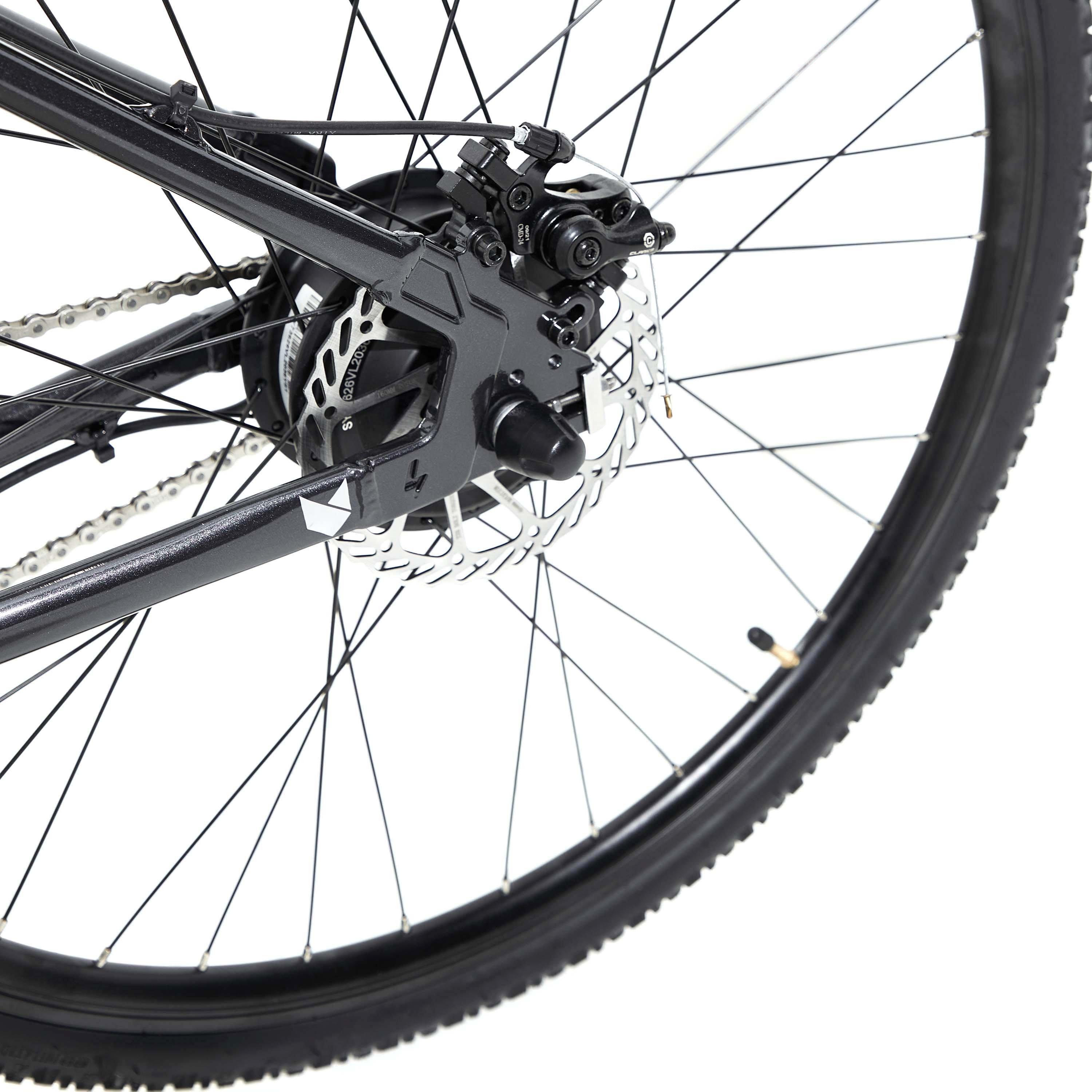

• Hubs: (F) Aluminium hub body 100mm QR disc (R) 36V/250W rear hub motor, disc brake
• Tyres: Ralson 700x35c

Drivetrain

• Pedals: PVC Trekking Type With BS Reflectors
• Crank: Amar 42T
• Front Derailleur: N/A
• Rear Derailleur: N/A
• Shifters: N/A
• Chain: Tec single speed, 114 Links
• Bottom Bracket: Cartridge type, 68mm
• Freewheel: Singlespeed

Components

• Handlebar: Alloy handlebar
• Headset: 1 1/8 steel bearing
• Grips: PVC Sports Trekking Type
• Stem: Alloy stem 80mm
• Brakes: Clarks Disc brakes 160mm rotor
• Brake levers: Promax alloy 3 Finger Type
• Saddle: Black saddle, black rails
• Seatpost: Alloy, 27.2 x 350mm

Electric Avenue Sizing

| | XS | S | M | L | XL | XXL | | Rider Height | 4'6 - 5'2 / 137cm - 157cm | 5'1 - 5'4 / 155cm - 162cm | 5'4 - 5'8 / 162cm - 170cm | 5'7 - 6'0 / 170cm - 183cm | 6'0 - 6'3 / 183cm - 192cm | 6'3 - 6'6 / 193cm - 203cm |
