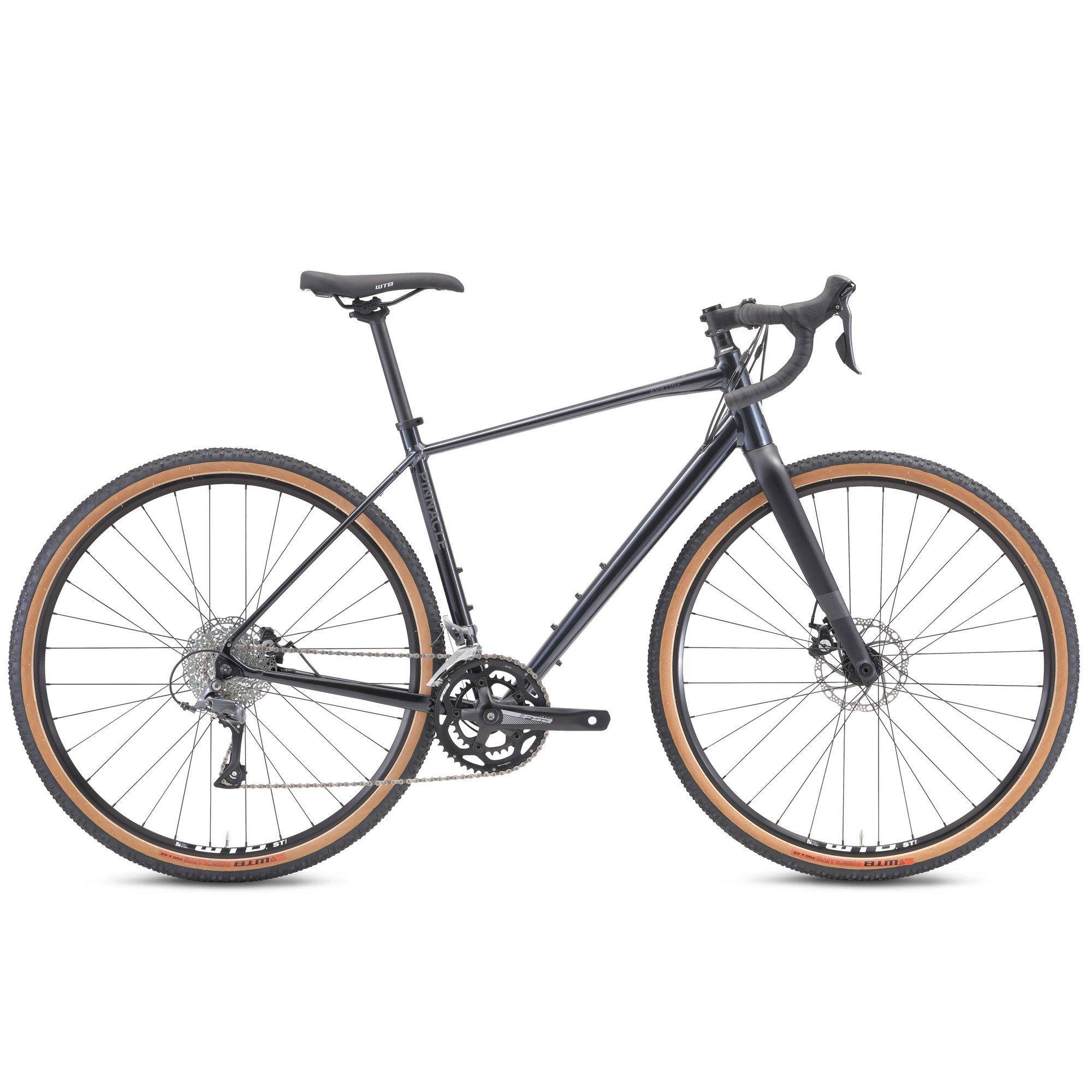

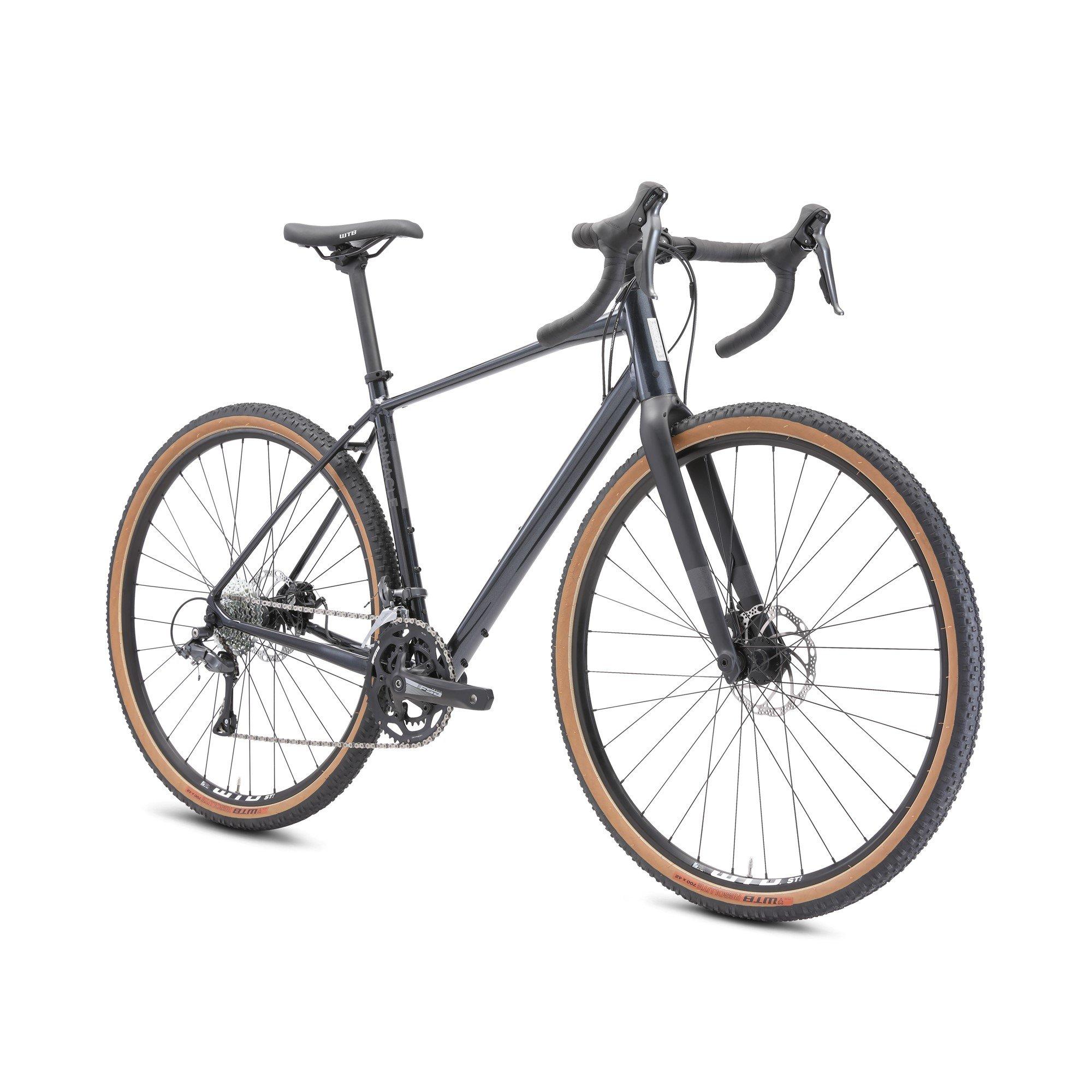

About the Pinnacle Arkose 1

Whether casually riding off into the sunset, out with the weekend gang or on a solo adventure, the Pinnacle Arkose excels in versatility. Don’t be fooled by the gravel name, this is a bike that lives for the tarmac as much as the off-road lumps, bumps and rougher surfaces.

At the heart of the Arkose is a strong and reliable aluminium frame while lightweight full carbon forks can accommodate mudguard mounts for those gravel days in the saddle. If you’re new to drop bar riding then the 8-speed Shimano Claris groupset offers up an excellent starting point and the inclusion of Tektro MD-C510 flat mount mechanical disc brakes disc brakes bring added confidence across various terrains and weather conditions.

When you’re mixing up the terrains then you need a pair of tyres you can rely and in all weathers, which is exactly what the WTB Resolute 42mm offer up.

The Independent's best gravel bike for £1000 or under: 'If you’re looking for a budget-friendly gravel bike to get out and about on, this capable machine from Pinnacle has got everything you need.'

Key Features

• Lightweight and durable 6061 heat treated aluminium frame
• Lightweight and comfortable full carbon fork with dynamo routing and mudguard mounts for maximum versatility. Flat mount disc brakes and 12mm thru-axles for futureproof peace of mind
• Smooth shifting and durable 8-speed Shimano Claris drivetrain
• Tektro MD-C510 flat mount mechanical disc brakes
• WTB Resolute 42mm tyres

Due to stock availability, some components may change without notice.

Specifications

Frameset

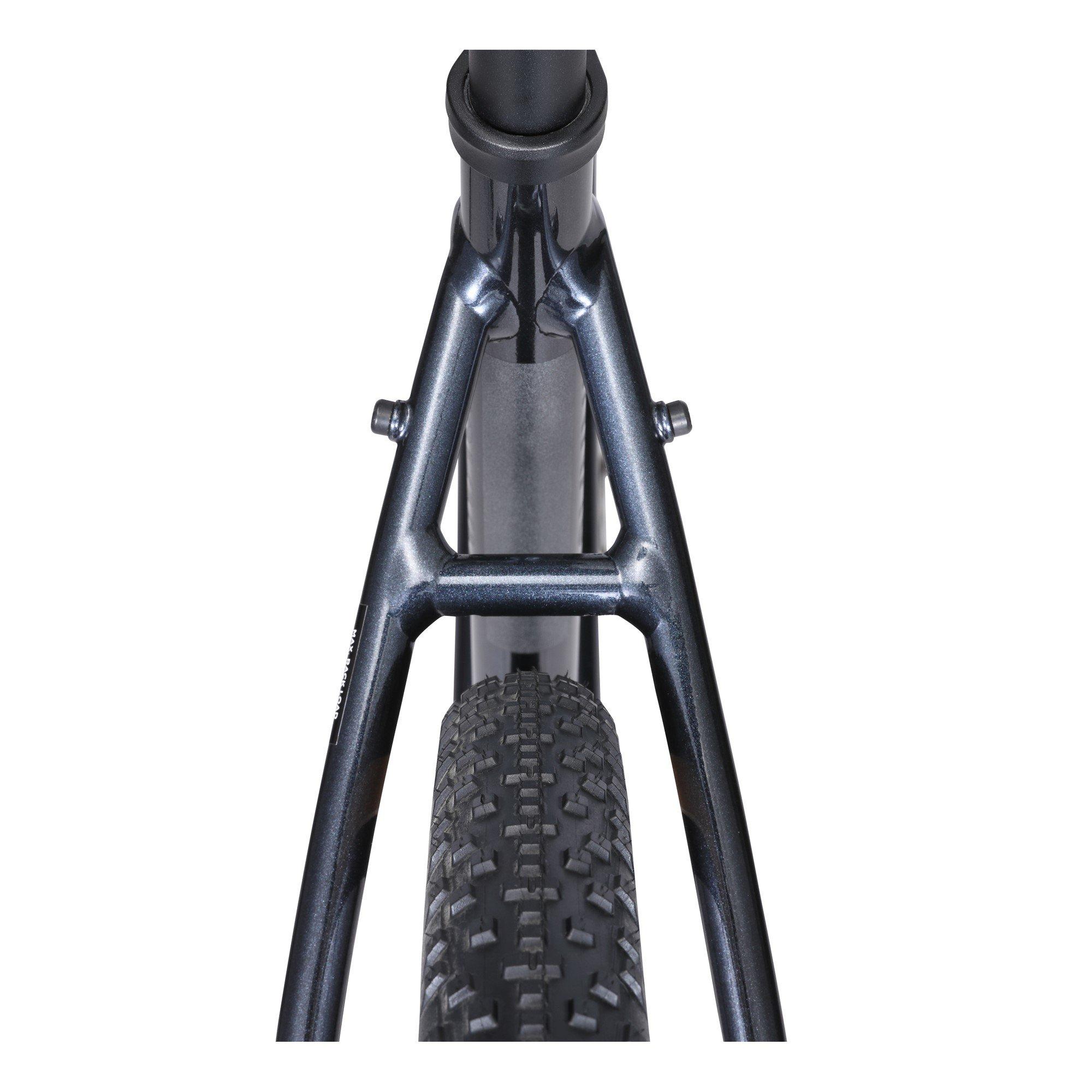

• Frame: 6061 heat treated aluminium
• Fork: full carbon fork with dynamo routing and mudguard mounts for maximum versatility. Flat mount disc brakes and 12mm thru-axles

Wheels

• Rims: WTB ST i19 TCS 2.0 29/700c 32H Disc
• Hubs: (F) Novatec 12mm thru axle 100mm, 32H, 6-BOLT (R) Novatec QR, 135mm 32H 6-BOLT
• Tyres: WTB Resolute 700x42c Comp tan wall

Drivechain

• Pedals: n/a
• Crank: FSA Temp Adventure 48X32T
• Front Derailleur: Shimano Claris FD-R2000
• Rear Derailleur: Shimano Claris RD-R2000 8-Speed

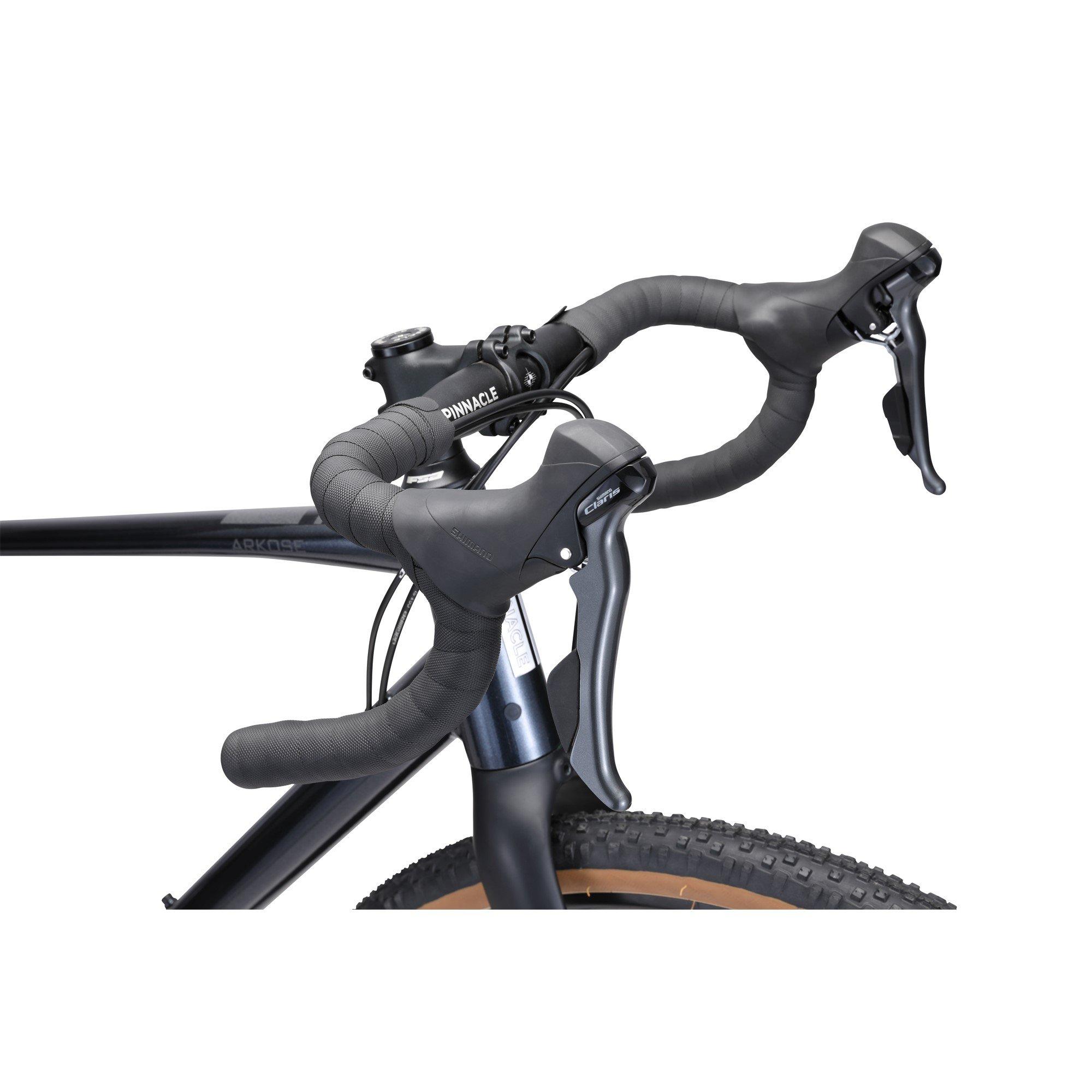

• Shifters: Shimano Claris ST-R2000 2x8
• Chain: KMC x8
• Bottom Bracket: FSA BB-7420ST 68mmx118mm
• Rear Cogs: Sunrace 11-34t 8-Speed

Components

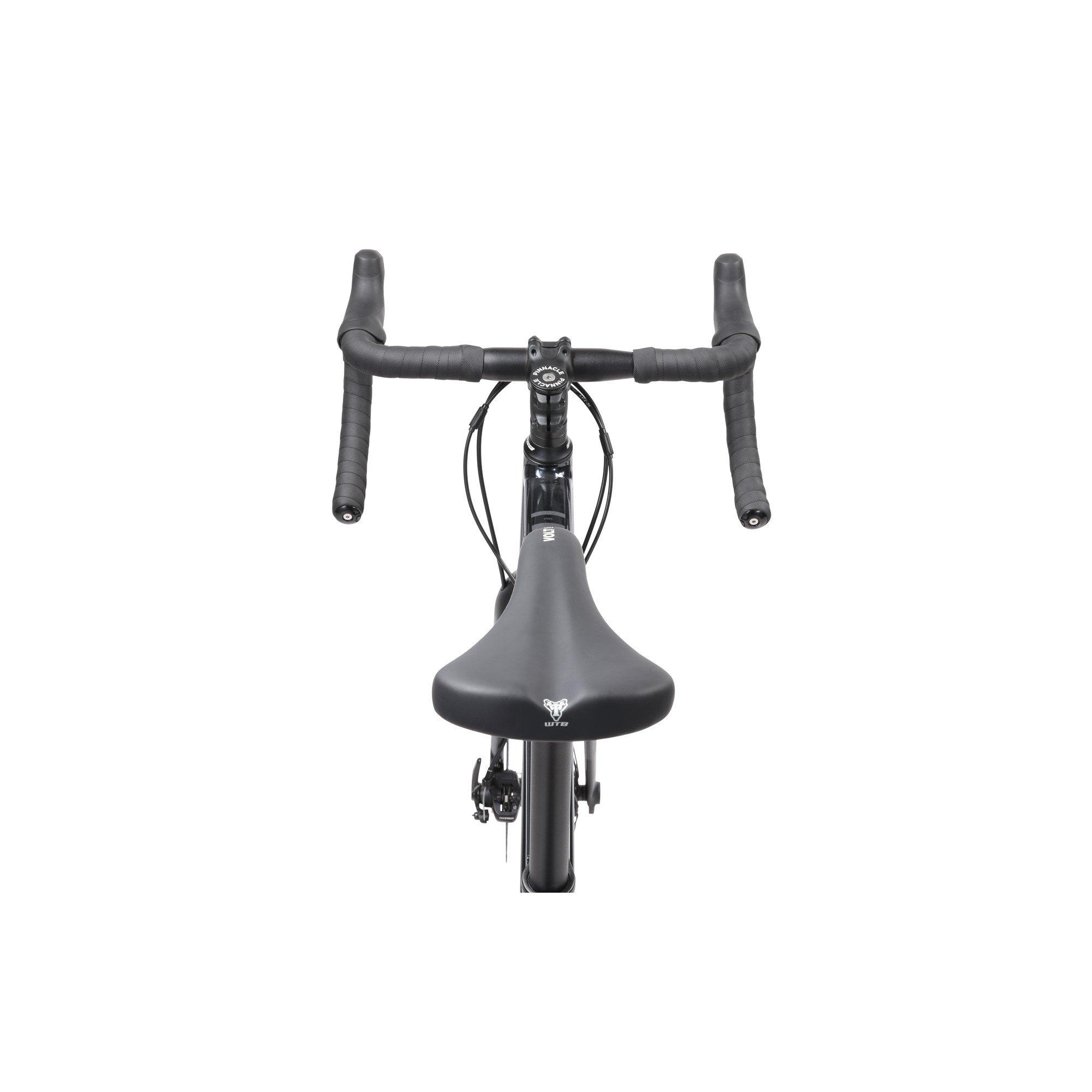

• Handlebar: Pinnacle alloy 31.8mm, DROP: 124mm, REACH: 80mm, WIDTH: 420MM (XS-M) 440 (L-XL)
• Grips: Shock-proof anti-slip gel bar tape, black, 3.5mm
• Stem: 31.8mm, angle: -7°, length: 80/90/100mm (XS-S, M-L, XL)
• Headset: FSA Orbit 1 1/8-1.5

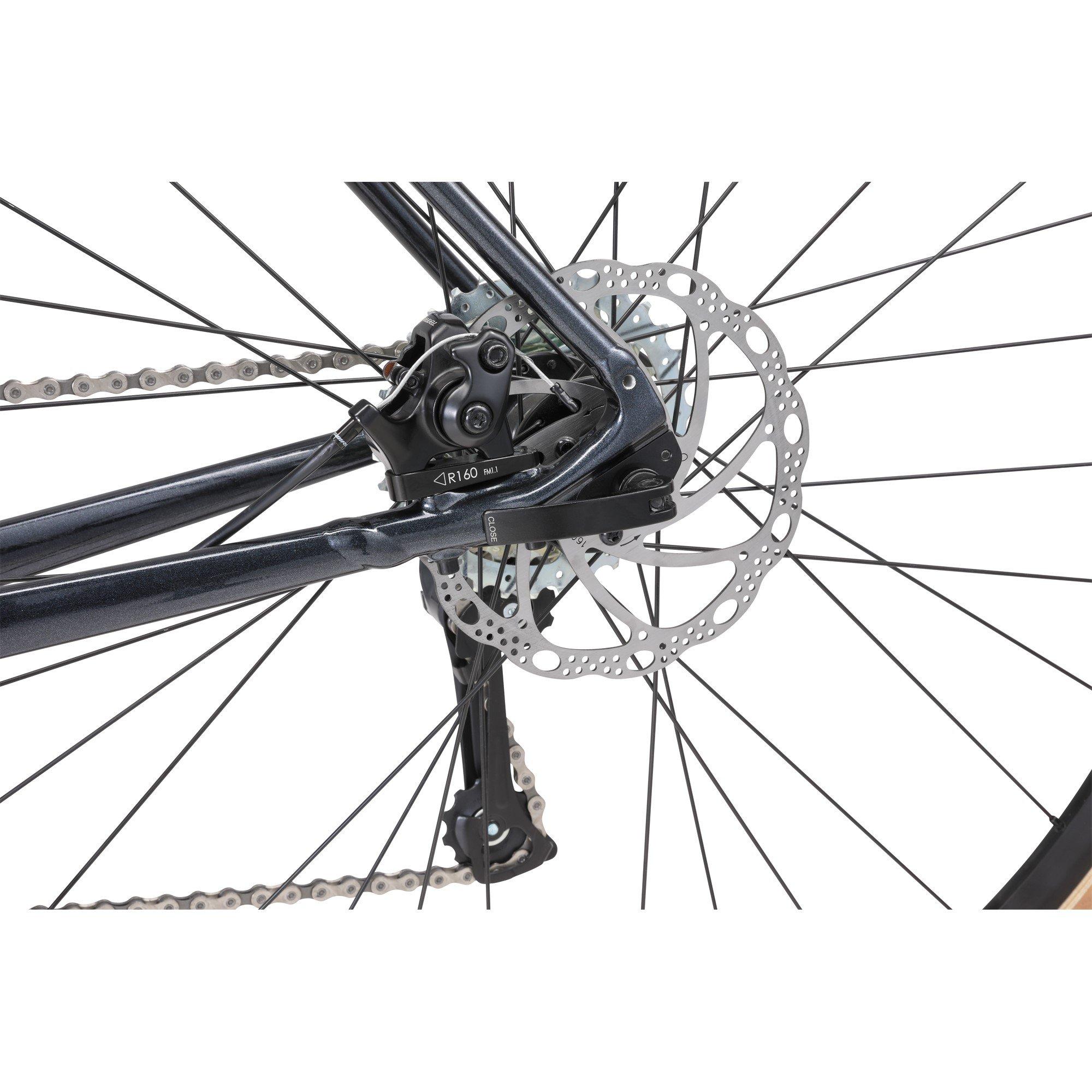

• Brakes: Tektro MD-C510 flat mount, 160mm rotor mechanical disc
• Brake Levers: Integrated w/ shifters
• Saddle: WTB Volt
• Seatpost: Promax alloy, 27.2MMx350MM

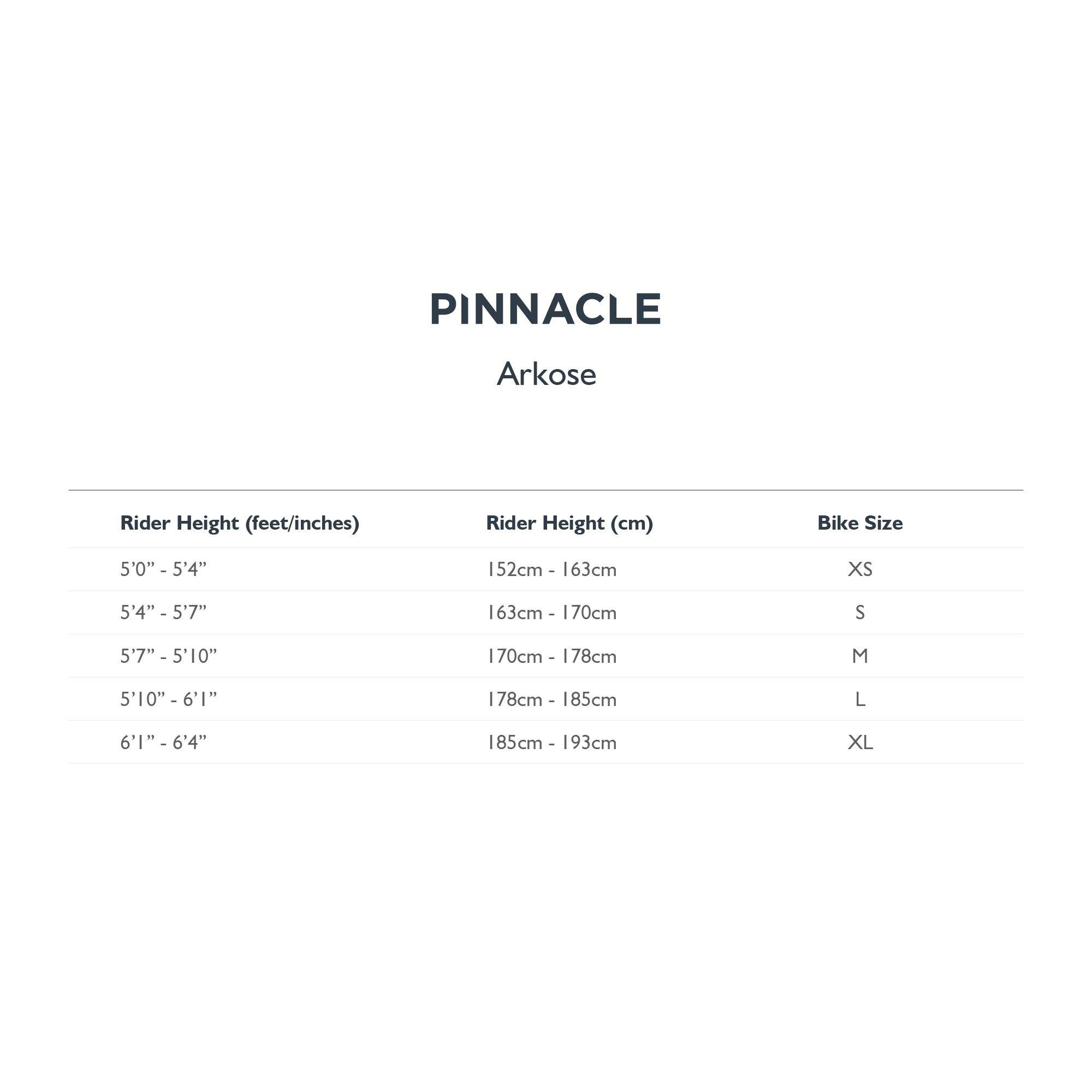

Bike Sizing

| | XS | S | M | L | XL | XXL | | Rider Height | 5’0 - 5'4 / 137cm - 157cm | 5'4 - 5'7 / 155cm - 162cm | 5'7 - 5'10 / 162cm - 170cm | 5'10 - 6'1 / 170cm - 183cm | 6'1 - 6'4 / 183cm - 192cm | 6'4 - 6'7 / 193cm - 203cm |
