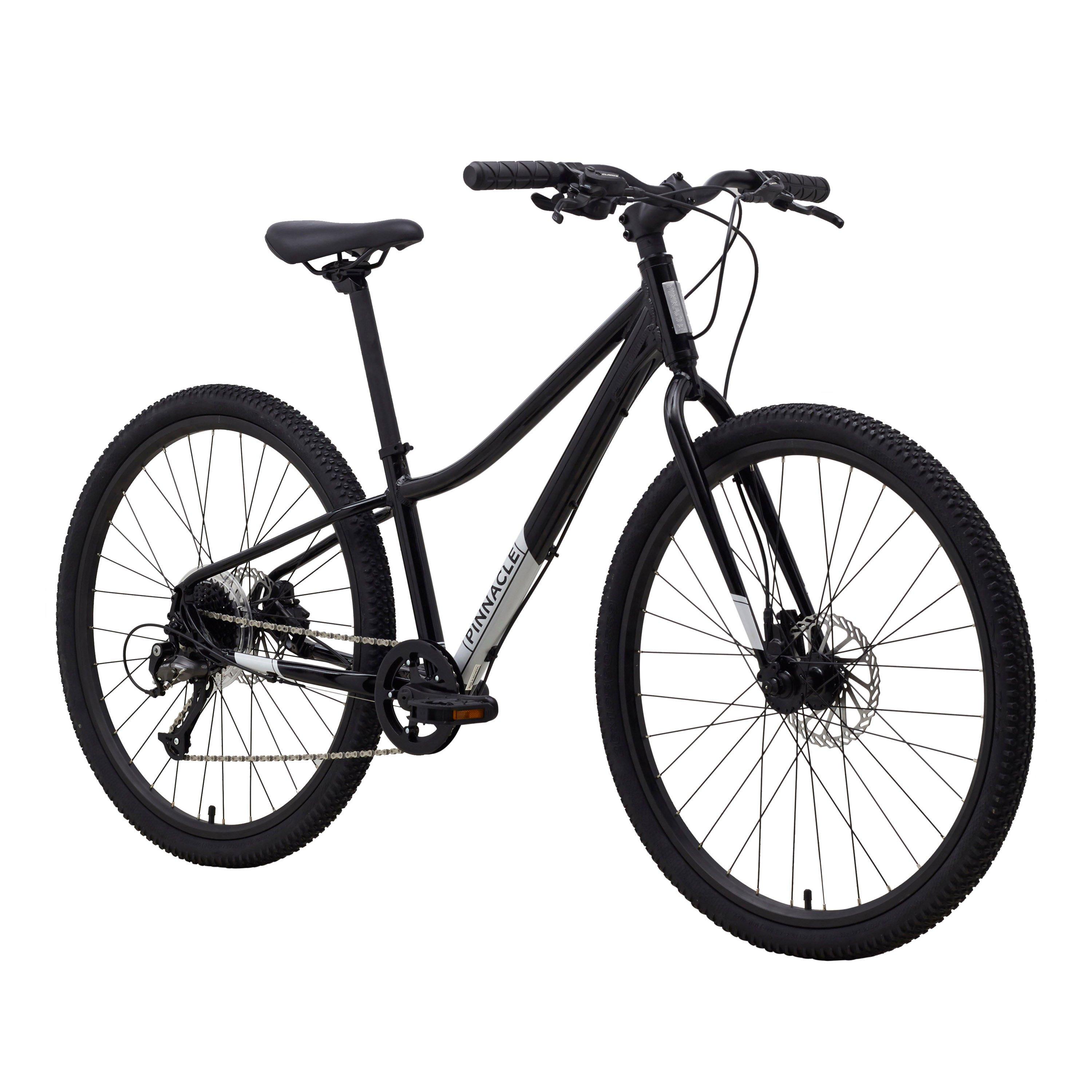

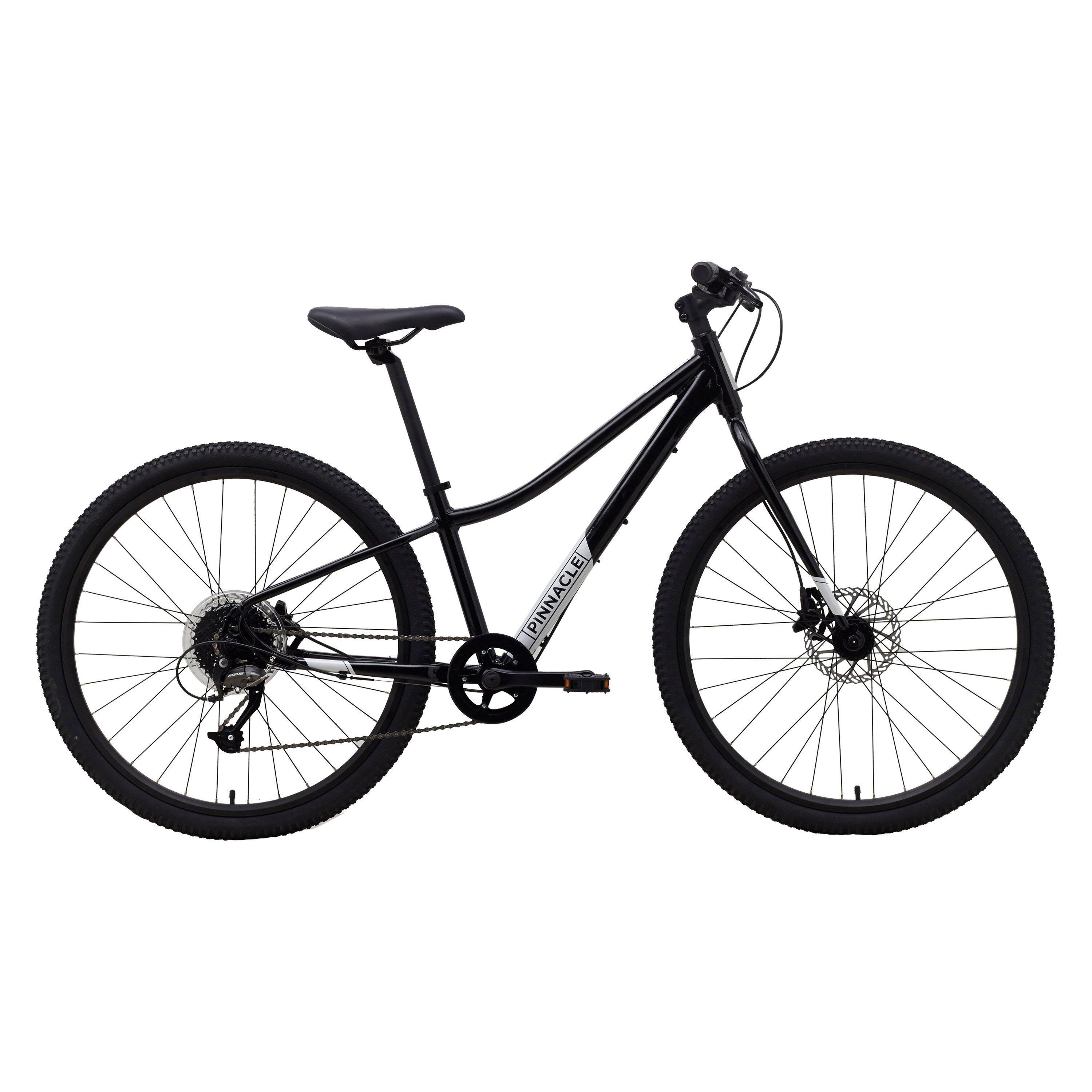

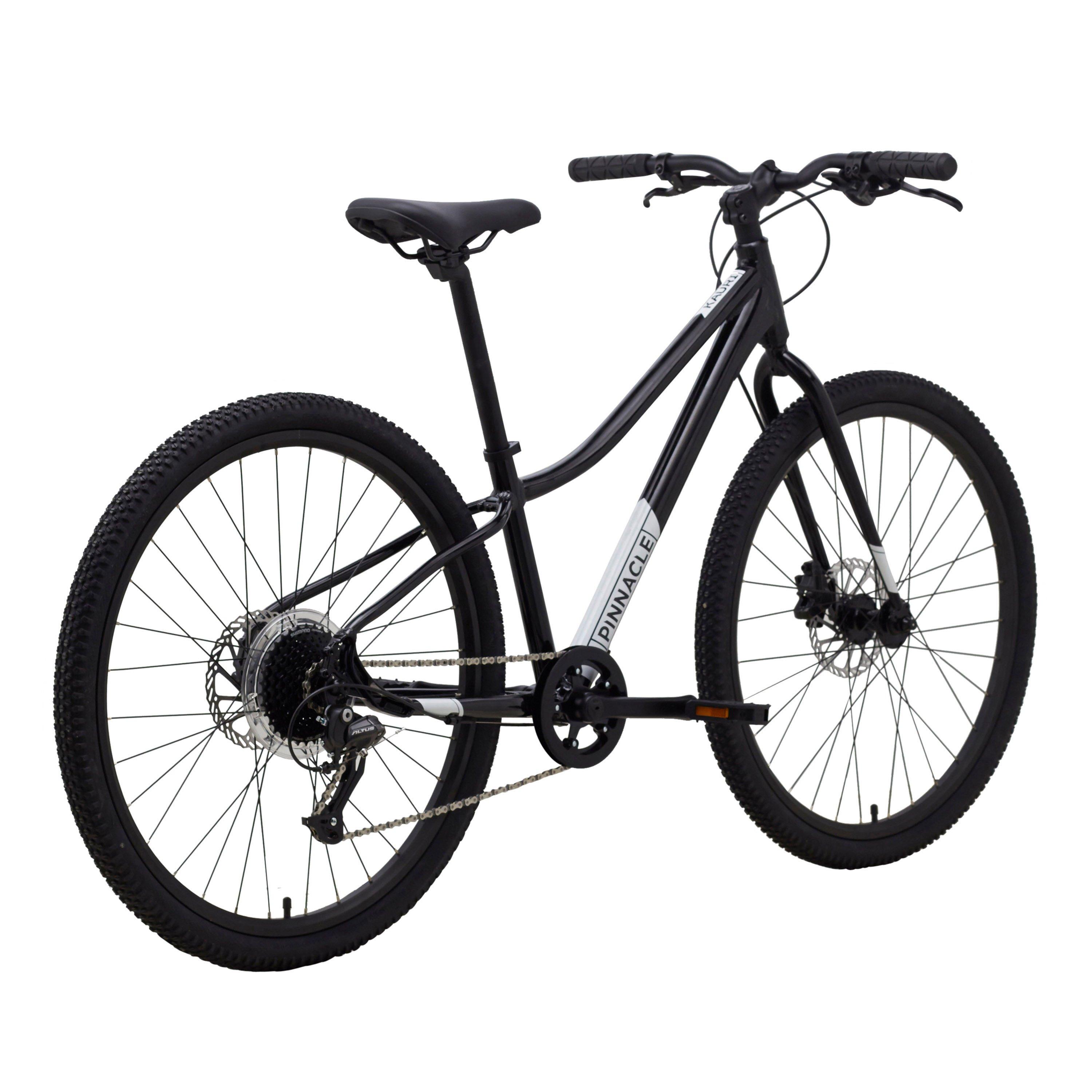

About the Pinnacle Kauri 26 Inch

When you’re young it’s all about having fun on your bike and keeping things simple. That’s the design ethos behind the Pinnacle Kauri 26 Inch Kids Bike.

Made to be rugged, for all those adventures across different terrains, the Kauri has been created with a lightweight aluminium frame. Sturdy enough to give you a confident ride, amongst all the thrills and spills, but also light enough for handling by young riders mastering their bike skills.

A neat touch is the inclusion of twin chain-plates which help avoid derailed chains and mean no more parents with greasy hands while the Shimano rear-only gears help keep things really simple to help learn the basics. Powerful disc brakes bring added confidence and control, especially for those wet conditions that kids just love riding in.

Due to stock availability, some components may change without notice.

EASY ASSEMBLY

Your bike will arrive carefully packed from one of our trained experts. To ensure safe shipping, and avoid damage to the bike whilst in transit, some basic assembly is required when it arrives with you. The process is simple and the box includes all the tools and instructions you need to get your bike ride-ready in no time.

You can also select click and collect or take the bike to your local Evans Cycles store who can complete the build and carry out a full safety check (£25 fee applies).

Simply drop in or book a slot

Build instructions can also be found here for reference.

Specifications

Frameset

• Frame: Pinnacle heat treated aluminium
• Fork: Steel fork

Wheels

• Rims: Alloy double wall 32H disc brake
• Hubs: Joytech 6-bolt, 32H QR 100mm (F)/135mm (R)
• Tyres: Deli 26”x1.95”

Drivetrain

• Pedals: Included
• Crank: Alloy, square taper, 32T
• Front Derailleur: n/a
• Rear Derailleur: Shimano Altus RD-M370, 9-Speed
• Shifters: Shimano Altus SL-M2000
• Chain: KMC X9
• Bottom Bracket: Square taper 68mm
• Rear Cogs: Shimano CS-HG200 11-34T 9-Speed

Components

• Handlebar: Alloy butted, diameter: 25.4MM, width: 620mm
• Grips: Velo, black
• Stem: Alloy 60mm length
• Headset: 1 1/8 threadless
• Brakes: Clarks Clout hydraulic disc, 180mm rotor
• Brake Levers: Clarks Clout
• Saddle: Velo, black
• Seatpost: Alloy, 27.2MMx350MM

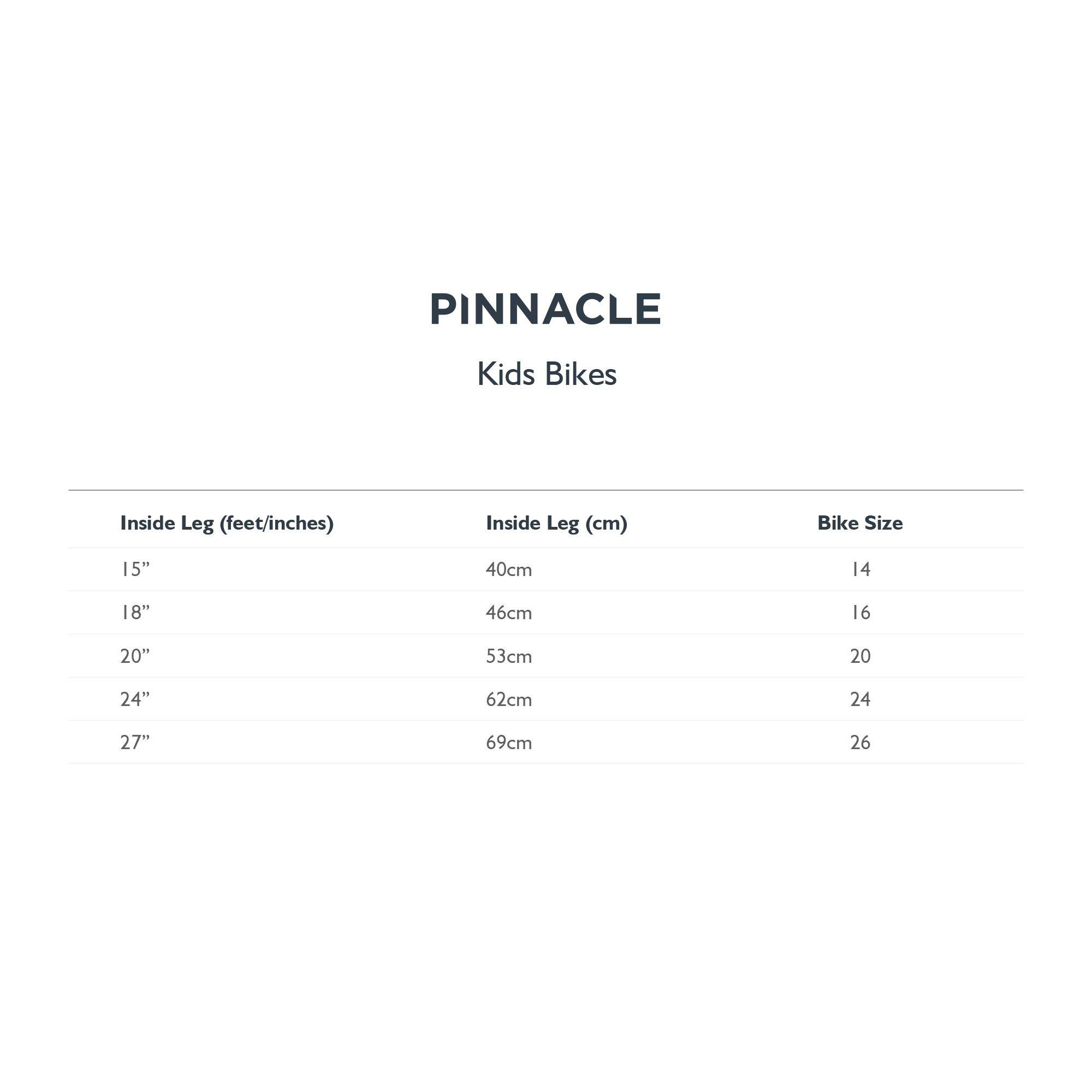

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.
