Description
Product code: 931041
About the All-New Marlin+ 6

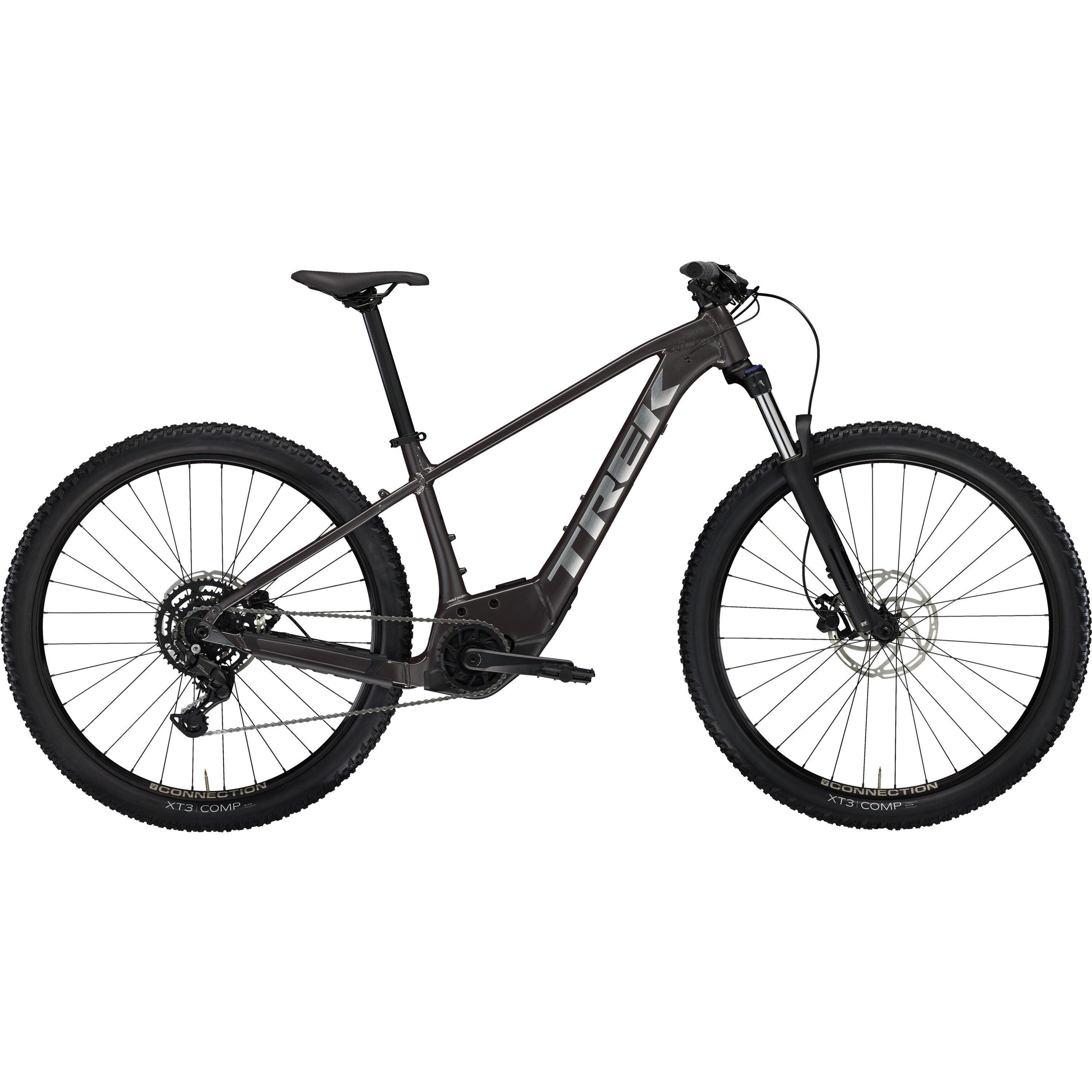

The Marlin+ 6 is an electric mountain bike that's ready to power up your trail rides without breaking the bank. It's equipped with the same fun and confident geometry as the non-electric Marlin, with the added boost of Bosch's Active Line Plus drive system. A 120 mm suspension fork soaks up rocks, roots and pot holes on your ride, while the 9-speed Shimano CUES is durable and reliable for wherever you roll.
Wheel Sizes: XS,S (27.5 inch) M,L,XL (29 inch)
Key Features
- Its AUTO mode adaptive motor support recognises speed reductions and adjusts assistance automatically
- The 120 mm suspension keeps your ride feeling smooth through bumps, roots and rough stuff
- The Marlin+ is easy to use with simple controls and intuitive support, so you can focus on the ride ahead, not complicated remotes
- Trail-savvy geometry keeps handling easy and confident from singletrack to city streets
- Tons of rack and mudguard mounts let you customise your ride for the trail or taking on daily commutes
Specifications
Frameset
- Frame: Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
- Fork: SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel
Wheels
- Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
- Tyres: Bontrager XT3 Comp, wire bead, 30 tpi, 2.40
Drivetrain
- Pedals: VP-536 nylon platform
- Crank: FSA CK-220, 165 mm length
- Chainring: FSA, 32T, steel
- Rear Derailleur: Shimano CUES U4000
- Shifters: Shimano U4000, 9-speed
- Chain: Shimano LG500, 9/10/11-speed
- Rear Cogs: Shimano LINKGLIDE LG300, 11-46, 9-speed
Components
- Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise
- Grips: Bontrager XR Endurance Comp, lock-on
- Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree
- Headset: Semi-integrated, loose ball bearing, 1-1/8 top, 1.5 bottom
- Brakes: Tektro, CentreLock, 203 mm
- Brake Levers: Tektro HD-M275 hydraulic disc
- Saddle: Bontrager Arvada, steel rails, 138 mm width
- Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset
Electric System
- Motor: Bosch Active Line Plus
- Battery: Bosch CompactTube 400 Wh
- Computer: Bosch Purion 200
- Charger: Bosch standard 2A, 230V, smart system
Bike Sizing
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Rider Height (cm) | 145 - 155 | 155 - 165 | 165 - 176 | 177 - 188 | 188 - 195 |
| Inseam (cm) | 69 - 73 | 74 - 78 | 79 - 83 | 84 - 89 | 89 - 91 |
